# TRENDWARE INTERNATIONAL, INC.
ETHER-16C
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear Bus
Wiring Type RG-58A/U 50ohm coaxial
Boot ROM Available

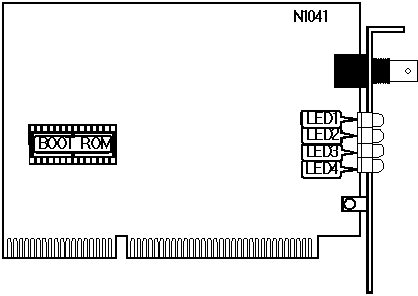

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|------+--------+--------------------------------------------|
| LED1 | On | Power on |
|------+--------+--------------------------------------------|
| LED1 | Off | Power off |
|------+--------+--------------------------------------------|
| LED2 | On | Link is good |
|------+--------+--------------------------------------------|
| LED2 | Off | Link is broken |
|------+--------+--------------------------------------------|
| LED3 | On | Collision detected on network |
|------+--------+--------------------------------------------|
| LED3 | Off | No collision detected on network |
|------+--------+--------------------------------------------|
| LED4 | On | Card is transmitting for an extended |
| | | period (Jabber) |
|------+--------+--------------------------------------------|
| LED4 | Off | Normal operation |
+------------------------------------------------------------+
