# TRENDWARE INTERNATIONAL, INC.
TE-100/PCI
NIC Type Ethernet
Transfer Rate 10/100Mbps
Data Bus PCI
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Not available

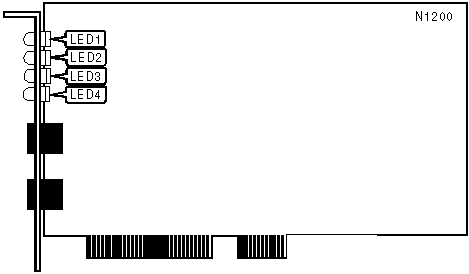

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Green | On | Data transmission has been |
| | | | selected for 100M port |
|------+--------+----------+---------------------------------|
| LED1 | Green | Off | Data transmission has been |
| | | | selected for 10M port |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Power is on |
|------+--------+----------+---------------------------------|
| LED2 | Green | Blinking | Data is being transmitted |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Power is off |
|------+--------+----------+---------------------------------|
| LED3 | Yellow | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED3 | Yellow | Blinking | Data is being received |
|------+--------+----------+---------------------------------|
| LED3 | Yellow | Off | Network connection is broken |
|------+--------+----------+---------------------------------|
| LED4 | Yellow | On | Collision is detected on |
| | | | Network |
|------+--------+----------+---------------------------------|
| LED4 | Yellow | Off | Collision is not detected on |
| | | | Network |
+------------------------------------------------------------+
