# STANDARD MICROSYSTEMS CORPORATION
ETHERCARD ELITE ULTRA SMC8216
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear Bus
Wiring Type RG-58A/U 50ohm coaxial
Boot ROM Available

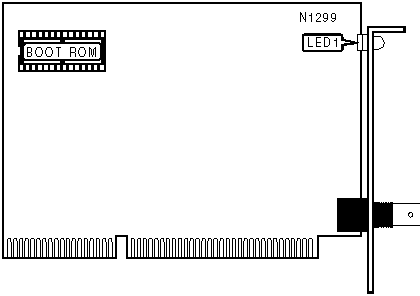

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Amber | Blinking | Data is being |
| | | | transmitted/received |
|------+-------+----------+----------------------------------|
| LED1 | Amber | Off | Data is not being |
| | | | transmitted/received |
+------------------------------------------------------------+
