# STAR LOGIC, INC.
RE2012P
Card Type Ethernet
Maximum network Rate 10/20Mbps
Data Bus 16-bit ISA
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Available

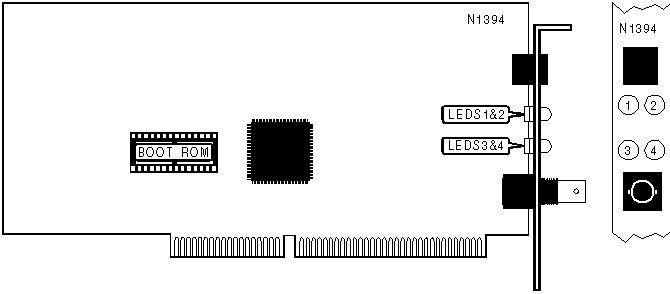

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | On | Network collision has been |
| | | | detected |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Network collision has not been |
| | | | detected |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Data is not being received |
|------+--------+----------+---------------------------------|
| LED2 | Green | Blinking | Data is being received |
|------+--------+----------+---------------------------------|
| LED3 | Green | On | Data is not being transmitted |
|------+--------+----------+---------------------------------|
| LED3 | Green | Blinking | Data is being transmitted |
|------+--------+----------+---------------------------------|
| LED4 | Green | On | 10Base-T network connection is |
| | | | good |
|------+--------+----------+---------------------------------|
| LED4 | Green | Off | 10Base-T network connection is |
| | | | broken |
+------------------------------------------------------------+
