# SURECOM TECHNOLOGY CORPORATION
EP324
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 32-bit PCI
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Available

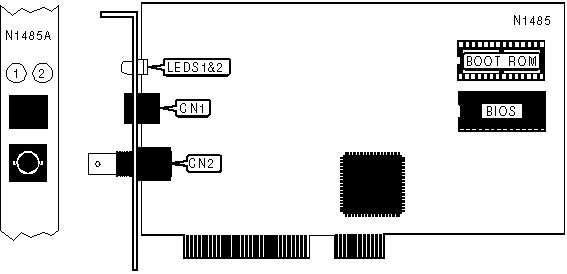

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------------+-------+----------------+-------|
| Unshielded twisted pair | CN1 | RG-58A/U 50ohm | CN2 |
| port | | coaxial port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Red | On | 10Base-T polarity is reversed |
|------+-------+----------+----------------------------------|
| LED1 | Red | Blinking | Data is being transmitted |
|------+-------+----------+----------------------------------|
| LED1 | Red | Off | 10Base-T polarity is normal |
|------+-------+----------+----------------------------------|
| LED2 | Green | On | 10Base-t network connection is |
| | | | good |
|------+-------+----------+----------------------------------|
| LED2 | Green | Blinking | Data is being received |
|------+-------+----------+----------------------------------|
| LED2 | Green | Off | 10Base-T network connection is |
| | | | broken |
+------------------------------------------------------------+
