       # TRENDWARE INTERNATIONAL, INC.

          TE-200CT PCMCIA

          NIC Type              Ethernet
          Network Transfer Rate 10Mbps
          Data Bus              PCMCIA Type II
          Topology              Linear Bus, Star
          Wiring Type           Unshielded twisted pair

                                RG-58A/U 50ohm coaxial
          Boot ROM              Not available

   IMG IMG 1


          +------------------------------------------------------------+

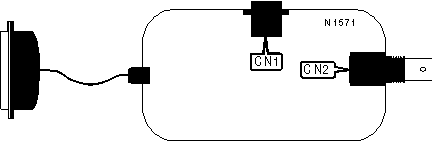

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |         Function          | Label |    Function    | Label |
          |---------------------------+-------+----------------+-------|
          | Unshielded twisted pair   |  CN1  | RG-58A/U 50ohm |  CN2  |
          | port                      |       | coaxial port   |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |   LED   |  Color  |  Status  |          Condition          |
          |---------+---------+----------+-----------------------------|
          |  LED1   |  Green  |    On    |         Power is on         |
          |---------+---------+----------+-----------------------------|
          |  LED1   |  Green  | Blinking |  Data is being transmitted  |
          |---------+---------+----------+-----------------------------|
          |  LED1   |  Green  |   Off    |        Power is off         |
          |---------+---------+----------+-----------------------------|
          |  LED2   |  Green  | Blinking |   Data is being received    |
          |---------+---------+----------+-----------------------------|
          |  LED2   |  Green  |   Off    | Data is not being received  |
          |------------------------------------------------------------|
          | Note: The locations of LED1 and LED2 are unidentified.     |
          +------------------------------------------------------------+
