# SYSKONNECT INTERNATIONAL, INC.
SK-NET FDDI-FP PCI
NIC Type FDDI
Network Transfer Rate 100Mbps
Data Bus PCI
Topology Linear Bus
Wiring Type Fiber optic cable
Boot ROM Not available

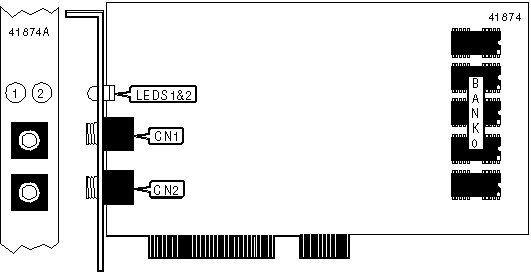

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| Fiber optic cable port | CN1 | Fiber optic cable | CN2 |
| | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| Note:The purpose of LED1 and LED2 is unidentified. |
+------------------------------------------------------------+
