# SYNAPSE TECHNOLOGIES, INC.
ET-32PCI
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 32-bit PCI
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Not available

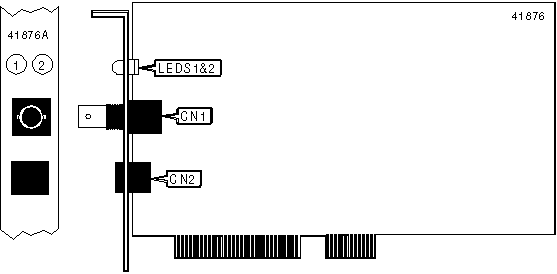

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------+-------+---------------------------+-------|
| RG-58A/U 50ohm | CN1 | Unshielded twisted pair | CN2 |
| coaxial port | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | On | 10Base-2 polarity is reversed |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | 10Base-2 polarity is not |
| | | | reversed |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | 10Base-T network connection is |
| | | | good |
|------+--------+----------+---------------------------------|
| LED2 | Green | Blinking | 10Base-T network connection is |
| | | | faulty |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | 10Base-T network connection is |
| | | | broken |
+------------------------------------------------------------+
