# Silicom connectivity solutions
fastethernet adapter
Card Type Network Interface Card
NIC Type Ethernet
Network Transfer Rate 10Mbps, 100Mbps
Topology Star
Wiring Type Unshielded twisted pair
Data Bus PCMCIA Type II
IMG IMG 1
+------------------------------------------------------------+

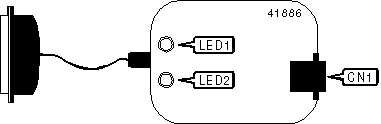

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Unshielded twisted pair | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | On | Connection established in |
| | | | 100Base-TX mode, or link |
| | | | integrity present in 10Base-T |
| | | | mode. |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | Off | Connection not established in |
| | | | 100Base-TX mode, or link |
| | | | integrity absent in 10Base-T |
| | | | mode. |
|------+--------+--------+-----------------------------------|
| LED2 | Green | On | 100Base-TX connection. |
|------+--------+--------+-----------------------------------|
| LED2 | Green | Off | 10Base-T connection. |
+------------------------------------------------------------+
