# Silicom connectivity solutions
etherserial rs-232 serial port
Card Type Network Interface Card
NIC Type Ethernet
I/O Options Serial port
Network Transfer 10Mbps
Rate
Topology Star, Linear Bus
Wiring Type Unshielded twisted pair, RG-58A/U 50ohm
coaxial
Data Bus PCMCIA Type II
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+---------+---------------+--------|
| Unshielded twisted pair | CN1 | Serial port | CN3 |
|-------------------------+---------+---------------+--------|
| RG-58A/U 50ohm coaxial | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Green | Blinking | Data is being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED1 | Green | Off | Data is not being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | On | Link integrity present on a |
| | | | 10Base-T connection |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | Off | Link integrity absent on a |
| | | | 10Base-T connection |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|

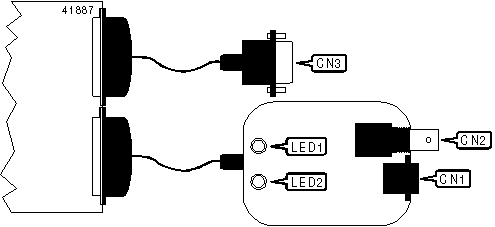

| Diagram depicts the connectors used to attach the PCMCIA |
| card to a serial peripheral and an Ethernet network. |
+------------------------------------------------------------+
