# svec computer corporation
pn605c-UTP/BNC
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard 16KB
Memory
Network Transfer 10Mbps
Rate
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair, RG-58A/U 50ohm
coaxial
Data Bus PCMCIA Type II
IMG IMG 1
+------------------------------------------------------------+

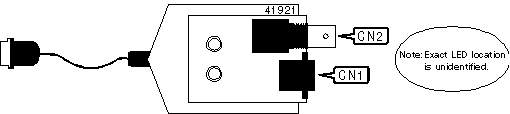

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Unshielded twisted | CN1 | RG-58A/U 50ohm | CN2 |
| pair | | coaxial | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+-------+----------+---------------------------------|
| TX/RX | Green | Blinking | Data is being |
| | | | transmitted/received |
|-------+-------+----------+---------------------------------|
| TX/RX | Green | Off | Data is not being |
| | | | transmitted/received |
|-------+-------+----------+---------------------------------|
| LINK | Green | On | UTP link integrity is good |
|-------+-------+----------+---------------------------------|
| LINK | Green | Off | UTP link integrity is broken |
+------------------------------------------------------------+
