# SVEC computer corporation
pn0455
Card Type Network Interface Card
NIC Type Ethernet
Network Transfer 100Mbps/10Mbps
Rate
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair, RG-58A/U 50ohm
coaxial
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

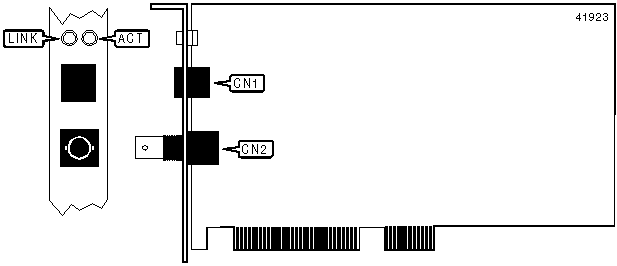

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Unshielded twisted | CN1 | RG-58A/U 50ohm | CN2 |
| pair | | coaxial | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| ACT | Yellow | Blinking | Data is being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| ACT | Yellow | Off | Data is not being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LINK | Green | On | 10Base-T Ethernet network |
| | | | connection is good |
|------+--------+----------+---------------------------------|
| LINK | Green | Off | 10Base-T Ethernet network |
| | | | connection is broken |
+------------------------------------------------------------+
