# SVEC COMPUTER CORPORATION
PCI ETHERNET ADAPTER
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Unidentified
Network Transfer Rate 10Mbps (20Mbps in full duplex mode)
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

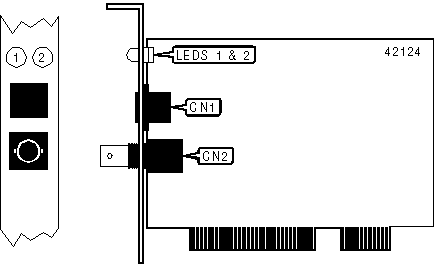

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+---------+---------------------+--------|
| RJ-45 connector | CN1 | RG-58A/U connector | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Data is being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Data is not being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | UTP link is good |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | UTP link is broken |
+------------------------------------------------------------+
