# SVEC COMPUTER CORPORATION
10/100 MBPS FAST ETHERNET
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Unidentified
Network Transfer Rate 10/100Mbps
Topology Star
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI

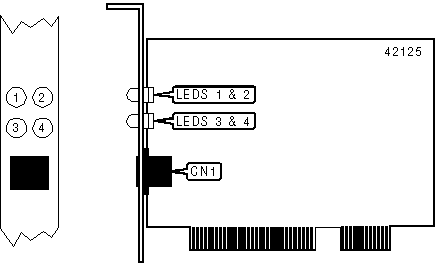

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RJ-45 connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | On | 100 Base-Tx network |
| | | | connection is good |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Off | 100 Base-Tx network |
| | | | connection is broken |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | On | 10 Base-T network |
| | | | connection is good |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Off | 10 Base-T network |
| | | | connection is broken |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | Blinking | Data is being |
| | | | transmitted/received |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | Off | Data is not being |
| | | | transmitted/received |
|------+--------------+----------+---------------------------|
| LED4 | Unidentified | On | UTP link is good |
|------+--------------+----------+---------------------------|
| LED4 | Unidentified | Off | UTP link is broken |
+------------------------------------------------------------+
