# SYSKONNECT, INC.
SK-4590, SK-4591
Card Type Network Interface Card
NIC Type Token Ring
Maximum Onboard Memory 128KB DRAM, 512KB DRAM (SK-4590 only)
Boot ROM Unidentified
Network Transfer Rate 4/16Mbps
Topology Star
Wiring Type Shielded twisted pair
Unshielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

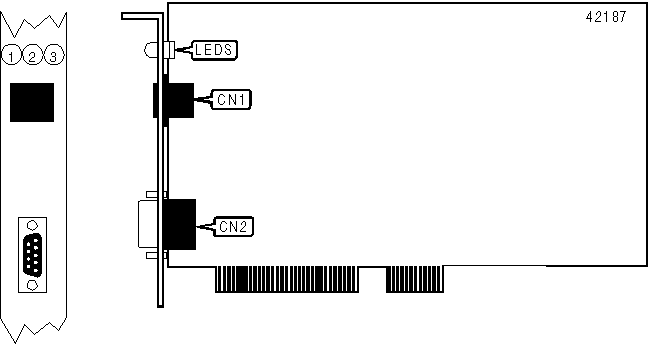

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| UTP via RJ-45 | CN1 | STP via DB-9 | CN2 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+--------+--------+----------------------------------|
| LED1 | Yellow | On | Data is being |
| | | | transmitted/received at 4Mbps |
|-------+--------+--------+----------------------------------|
| LED1 | Yellow | Off | Data is not being |
| | | | transmitted/received at 4Mbps |
|-------+--------+--------+----------------------------------|
| LED3 | Yellow | On | Data is being |
| | | | transmitted/received at 16Mbps |
|-------+--------+--------+----------------------------------|
| LED3 | Yellow | Off | Data is not being |
| | | | transmitted/received at 16Mbps |
|------------------------------------------------------------|
| Note: Exact color and function of LED2 are unidentified. |
+------------------------------------------------------------+
