# TRENDWARE INTERNATIONAL, INC.
ETHER-T2
Card Type Ethernet Transceiver
NIC Type Ethernet
Network Transfer Rate 10Mbps
Topology Linear Bus
Wiring Type AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

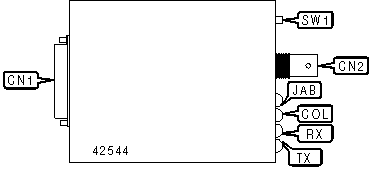

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| AUI transceiver via | CN1 | RG-58A/U BNC | CN2 |
| DB-15 | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| SQE collision detection enabled | SW1 | On |
|----------------------------------------+-------+-----------|
| SQE collision detection disabled | SW1 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| JAB | Yellow | On | Abnormal frame rate detected |
|------+--------+--------+-----------------------------------|
| JAB | Yellow | Off | Frame rate is normal |
|------+--------+--------+-----------------------------------|
| COL | Yellow | On | Collision detected on network |
|------+--------+--------+-----------------------------------|
| COL | Yellow | Off | No collision detected on network |
|------+--------+--------+-----------------------------------|
| RX | Green | On | Data is being received |
|------+--------+--------+-----------------------------------|
| RX | Green | Off | Data is not being received |
|------+--------+--------+-----------------------------------|
| TX | Green | On | Data is being transmitted |
|------+--------+--------+-----------------------------------|
| TX | Green | Off | Data is not being transmitted |
+------------------------------------------------------------+
