# TRENDWARE INTERNATIONAL, INC.
ETHER-TT
Card Type Ethernet Transceiver
NIC Type Ethernet
Network Transfer Rate 10Mbps
Topology Linear Bus, Star
Wiring Type Unshielded Twisted Pair
AUI transceiver via DB-15 port
Data Bus External

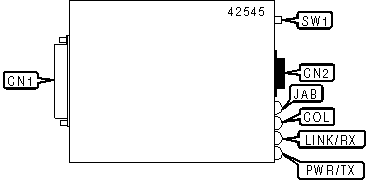

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| AUI transceiver via | CN1 | RJ-45 UTP connector | CN2 |
| DB-15 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| SQE collision detection enabled | SW1 | On |
|----------------------------------------+-------+-----------|
| SQE collision detection disabled | SW1 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|---------+--------+----------+------------------------------|
| JAB | Yellow | On | Abnormal frame rate detected |
|---------+--------+----------+------------------------------|
| JAB | Yellow | Off | Frame rate is normal |
|---------+--------+----------+------------------------------|
| COL | Yellow | On | Collision detected on |
| | | | network |
|---------+--------+----------+------------------------------|
| COL | Yellow | Off | No collision detected on |
| | | | network |
|---------+--------+----------+------------------------------|
| LINK/RX | Green | On | UTP link detected |
|---------+--------+----------+------------------------------|
| LINK/RX | Green | Blinking | Data is being received |
|---------+--------+----------+------------------------------|
| LINK/RX | Green | Off | UTP link not detected/Data |
| | | | is not being received |
|---------+--------+----------+------------------------------|
| PWR/TX | Green | On | Power on |
|---------+--------+----------+------------------------------|
| PWR/TX | Green | Blinking | Data is being transmitted |
|---------+--------+----------+------------------------------|
| PWR/TX | Green | Off | Power off/Data is not being |
| | | | transmitted |
+------------------------------------------------------------+
