       # TRENDWARE INTERNATIONAL, INC.

          TE-16 XP PLUS CT

          Card Type             Network Interface Card
          NIC Type              Ethernet
          Boot ROM              Available
          Network Transfer Rate 10Mbps
          Topology              Linear Bus, Star
          Wiring Type           Unshielded twisted pair

                                RG-58A/U 50ohm coaxial
          Data Bus              16-bit ISA

   IMG IMG 1


          +------------------------------------------------------------+

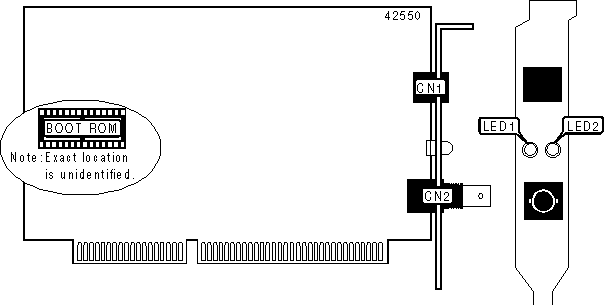

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function       | Label |       Function       | Label |
          |---------------------+-------+----------------------+-------|
          | RJ-45 UTP connector |  CN1  | RG-58A/U BNC         |  CN2  |
          |                     |       | connector            |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color |  Status  |            Condition             |
          |------+-------+----------+----------------------------------|
          | LED1 | Green |    On    |      Network power detected      |
          |------+-------+----------+----------------------------------|
          | LED1 | Green | Blinking |    Data is being transmitted     |
          |------+-------+----------+----------------------------------|
          | LED1 | Green |   Off    | Network power not detected/Data  |
          |      |       |          |     is not being transmitted     |
          |------+-------+----------+----------------------------------|
          | LED2 | Green |    On    |       Valid link detected        |
          |------+-------+----------+----------------------------------|
          | LED2 | Green | Blinking |      Data is being received      |
          |------+-------+----------+----------------------------------|
          | LED2 | Green |   Off    |      Invalid link detected       |
          +------------------------------------------------------------+
