# TRENDWARE INTERNATIONAL, INC.
ETHER-TC
Card Type Ethernet Converter
NIC Type Ethernet
Network Transfer Rate 10Mbps
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

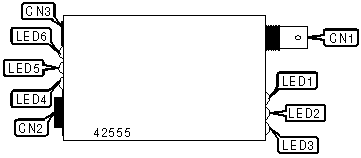

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+---------+---------------+---------|
| RG-58A/U BNC connector | CN1 | AC power | CN3 |
|------------------------+---------+---------------+---------|
| RJ-45 UTP connector | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Blinking | Data is being received |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Off | Data is not being |
| | | | received |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Blinking | Collision detected on |
| | | | network |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Off | No collision detected on |
| | | | network |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | On | Abnormal frame rate |
| | | | detected |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | Off | Frame rate is normal |
|------+--------------+----------+---------------------------|
| LED4 | Unidentified | Blinking | Collision detected on |
| | | | network |
|------+--------------+----------+---------------------------|
| LED4 | Unidentified | Off | No collision detected on |
| | | | network |
|------+--------------+----------+---------------------------|
| LED5 | Unidentified | On | UTP link is good |
|------+--------------+----------+---------------------------|
| LED5 | Unidentified | Off | UTP link is broken |
|------+--------------+----------+---------------------------|
| LED6 | Green | On | Unit is receiving power |
|------+--------------+----------+---------------------------|
| LED6 | Green | Blinking | Data is being received |
|------+--------------+----------+---------------------------|
| LED6 | Green | Off | Unit is not receiving |
| | | | power/Data is not being |
| | | | received |
+------------------------------------------------------------+
