# SUPERTECH COMPUTER CO., LTD
LAN-100TX
Card Type Network Interface Card
NIC Type Ethernet
Boot ROM Available
Network Transfer Rate 100Mbps/10Mbps
Topology Star, Peer-Peer
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

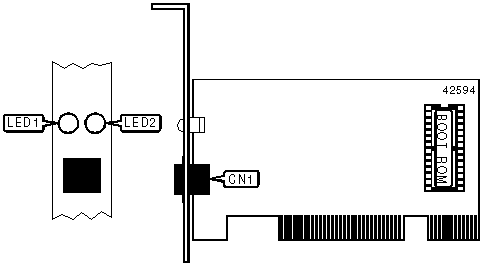

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RJ-45 UTP connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | On | Network connection is |
| | | | good |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Off | Network connection is not |
| | | | good |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | On or | Data is being received |
| | | flashing | |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Off | Data is not being |
| | | | received |
+------------------------------------------------------------+
