       # SUPERTECH COMPUTER CO., LTD.

          LAN-2PCIA

          Card Type             Network Interface Card
          NIC Type              Ethernet
          Boot ROM              Not available
          Network Transfer Rate 10Mbps
          Topology              Linear Bus, Star
          Wiring Type           Unshielded twisted pair

                                RG-58A/U 50ohm coaxial
          Data Bus              32-bit PCI

   IMG IMG 1


          +------------------------------------------------------------+

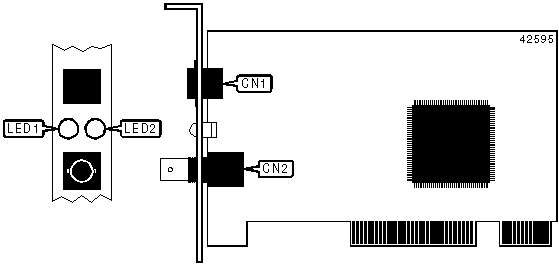

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function       | Label  |      Function       | Label |
          |---------------------+--------+---------------------+-------|
          | RJ-45 UTP connector |  CN1   | RG-58A/U connector  |  CN2  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color  |  Status  |            Condition            |
          |------+--------+----------+---------------------------------|
          | LED1 | Green  |    On    |   Network connection is good    |
          |------+--------+----------+---------------------------------|
          | LED1 | Green  |   Off    | Network connection is not good  |
          |------+--------+----------+---------------------------------|
          | LED2 |  Red   | Blinking |     Data is being received      |
          |------+--------+----------+---------------------------------|
          | LED2 |  Red   |   Off    |   Data is not being received    |
          +------------------------------------------------------------+
