# ZENITH DATA SYSTEMS
LAN10E-MAT
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Star
Linear Bus
Wiring Type Shielded/Unshielded twisted pair
AUI transceiver via DB-15 port
RG--58A/U 50ohm coaxial
Boot ROM Available

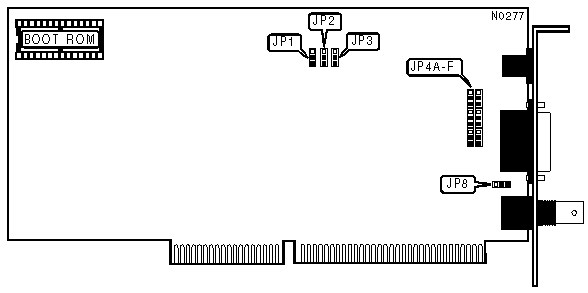

IMG IMG 1
+------------------------------------------------------------+
| BASE MEMORY ADDRESS |
|------------------------------------------------------------|
| Address | JP1 |
|----------------------------+-------------------------------|
| CC00h | Pins 1 & 2 Closed |
|----------------------------+-------------------------------|
| D000h | Pins 2 & 3 Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT REQUEST |
|------------------------------------------------------------|
| IRQ | JP2 |
|----------------------------+-------------------------------|
| 5 | Pins 1 & 2 Closed |
|----------------------------+-------------------------------|
| 10 | Pins 2 & 3 Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ROM ENABLE |
|------------------------------------------------------------|
| Setting | JP3 |
|-----------------------------------+------------------------|
| » | Disabled | Pins 2 & 3 Closed |
|---+-------------------------------+------------------------|
| | Enabled (at address D800h) | Pins 1 & 2 Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Type | JP4A - JP4F |
|----------------------------------------+-------------------|
| Shielded/Unshielded twisted pair | Pins 1 & 2 Closed |
|----------------------------------------+-------------------|
| RG--58A/U 50ohm or AUI transceiver via | Pins 2 & 3 Closed |
| DB-15 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIGNAL QUALITY |
|------------------------------------------------------------|
| Setting | JP8 |
|--------------------------------+---------------------------|
| » | SQE test disabled | Pins 2 & 3 Closed |
|---+----------------------------+---------------------------|
| | SQE test enabled | Pins 1 & 2 Closed |
+------------------------------------------------------------+
