# ZENITH DATA SYSTEMS
XT LANCARD
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 8-bit ISA
Topology Linear Bus
Wiring Type Broadband Modem via DB-15 port
Boot ROM Available

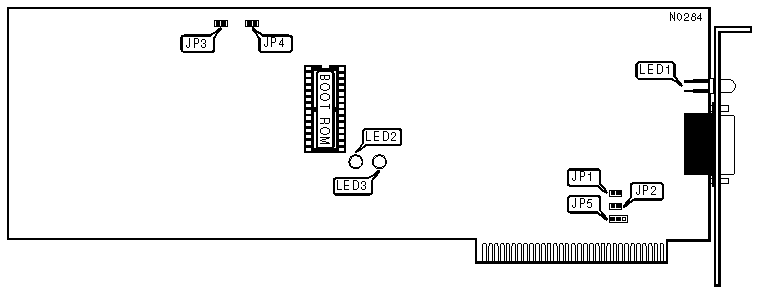

IMG IMG 1
+------------------------------------------------------------+
| BOOT ROM |
|------------------------------------------------------------|
| Setting | JP1 |
|-----------------------------------------+------------------|
| » | Disabled | Open |
|-------------+---------------------------+------------------|
| | Enabled | Closed |
|------------------------------------------------------------|
| Note:The location of the Boot ROM socket may vary on |
| different revisions of this card. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE MEMORY ADDRESS, I/O BASE ADDRESS, AND BOOT ROM |
| ADDRESS |
|------------------------------------------------------------|
| Base Memory | I/O Address | Boot ROM Address | JP2 |
| Address | | | |
|------------------+-------------+------------------+--------|
| » | D0000h | 0360h | CC000h | Closed |
|-----+------------+-------------+------------------+--------|
| | D8000h | 0368h | CE000h | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONFIGURATION MEMORY |
|------------------------------------------------------------|
| Setting | JP4 |
|------------------------------------+-----------------------|
| » | Configuration memory normal | Open |
| | operation | |
|---+--------------------------------+-----------------------|
| | Configuration memory reset to | Closed for 30 seconds |
| | factory defaults | during power-up |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT REQUEST |
|------------------------------------------------------------|
| IRQ | JP5 |
|----------------------------+-------------------------------|
| » | 2 | Pins 1 & 2 Closed |
|---+------------------------+-------------------------------|
| | 3 | Pins 2 & 3 Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|------------------+----------+------------------------------|
| LED1 | On | Modem is bad or not |
| | | connected |
|------------------+----------+------------------------------|
| LED1 | Blinking | Network activity detected |
|------------------+----------+------------------------------|
| LED2 and LED3 | On | Self test completed normally |
|------------------+----------+------------------------------|
| LED2 and/or LED3 | Off | Self test failed, will |
| | | display error code on |
| | | screen. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Jumper | Setting |
|----------------------------+-------------------------------|
| JP3 | Factory test only |
+------------------------------------------------------------+
