# STANDARD MICROSYSTEMS CORPORATION
ETHERCARD PLUS/A
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 32-bit MCA
Topology Linear Bus
Wiring Type RG-58A/U 50ohm coaxial
AUI transceiver via DB-15 port
Boot ROM Available

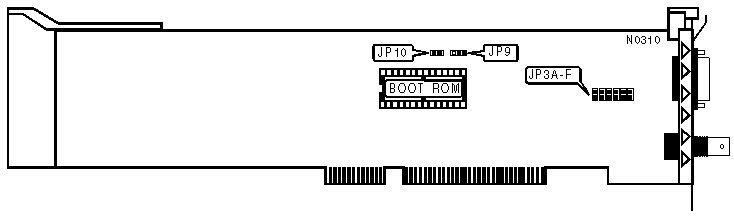

IMG IMG 1
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Type | JP3-JPF |
|------------------------------------+-----------------------|
| » | RG-58A/U 50ohm coaxial | Closed |
|---+--------------------------------+-----------------------|
| | AUI transceiver via DB-15 port | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BOOT ROM SIZE |
|------------------------------------------------------------|
| Size | JP9 | JP10 |
|--------------------+--------------------+------------------|
| » | 16KB | Pins 1 & 2 closed | Open |
|---+----------------+--------------------+------------------|
| | 32KB | Pins 1 & 2 closed | Closed |
|---+----------------+--------------------+------------------|
| | 64KB | Pins 2 & 3 closed | Closed |
+------------------------------------------------------------+
