       # UNIDENTIFIED

          ETHERMAC (NUBUS)

          NIC Type:           Ethernet
          Transfer Rate:      10Mbps
          Data Bus:           32-Bit NuBus (Apple)
          Topology:           Linear Bus

                              Star
          Wiring Type         AUI transceiver via DB-15 port

                              RG-58A/U 50ohm coaxial

                              Shielded/Unshielded twisted pair
          Boot ROM            Not Available

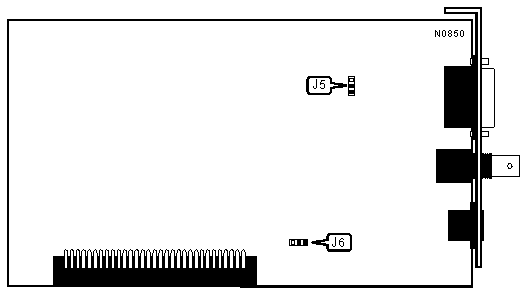

   IMG IMG 1


          +------------------------------------------------------------+
          |                         CABLE TYPE                         |
          |------------------------------------------------------------|
          |               Type               |           J5            |
          |----------------------------------+-------------------------|
          |  AUI transceiver via DB-15 port  |      All pins open      |
          |----------------------------------+-------------------------|
          |      RG-58A/U 50ohm coaxial      |    Pins 2 & 3 closed    |
          |----------------------------------+-------------------------|
          | Shielded/Unshielded twisted pair |    Pins 1 & 2 closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      10BASE-T STATUS                       |
          |------------------------------------------------------------|
          |             Setting             |            J6            |
          |---------------------------------+--------------------------|
          |      10BASE-T hub selected      |    Pins 2 & 3 closed     |
          |---------------------------------+--------------------------|
          |    Pre-10BASE-T hub selected    |    Pins 1 & 2 closed     |
          |------------------------------------------------------------|
          | Note:J6 only applies when twisted pair cable is being      |
          | used.                                                      |
          +------------------------------------------------------------+
