# UNIDENTIFIED
ML2PC
NIC Type: Ethernet
Transfer Rate: 10Mbps
Data Bus: 8-bit ISA
Topology: Linear Bus
Wiring Type AUI transceiver via DB-15 port
Boot ROM Not available

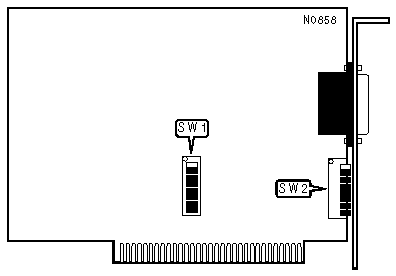

IMG IMG 1
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Switch | Setting |
|-------------------------------+----------------------------|
| SW1/1 | On |
|-------------------------------+----------------------------|
| SW1/2-SW1/8 | Off |
|-------------------------------+----------------------------|
| SW2/8 | N/A |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O ADDRESS |
|------------------------------------------------------------|
| Address | SW2 |
|------------------------+-----------------------------------|
| 1 | SW2/1 on |
|------------------------+-----------------------------------|
| 31 | SW2/1-SW2/5 all on |
|------------------------------------------------------------|
| Note:The address range is in decimal form from 0-to 31. |
| The switches are a binary representation of the addresses. |
| When a switch is on, the corresponding bit is set to 1 and |
| has the following decimal value: SW2/1=16, SW2/2=8, |
| SW2/3=4, SW2/4=2, SW2/5=1. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SPEED |
|------------------------------------------------------------|
| Speed | SW2/6 | SW2/7 |
|--------------------+-------------------+-------------------|
| 38.4Kbits/s | Off | Off |
|--------------------+-------------------+-------------------|
| 76.8Kbits/s | Off | On |
|--------------------+-------------------+-------------------|
| 153.6Kbits/s | On | Off |
|--------------------+-------------------+-------------------|
| 307.2Kbits/s | On | On |
+------------------------------------------------------------+
