# ZERO ONE NETWORKING
ZOT-N122PE
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus Parallel
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Not available
IMG IMG 1
IMG IMG 2
+------------------------------------------------------------+

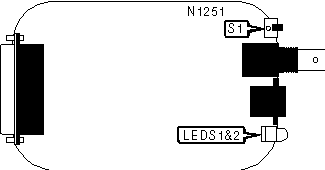

| CABLE TYPE SELECTION |
|------------------------------------------------------------|
| Cable Type | S1 |
|-----------------------------------+------------------------|
| ยป | RG-58A/U 50ohm coaxial | Position 1 |
|---+-------------------------------+------------------------|
| | Unshielded twisted pair | Position 2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|--------+--------+----------+-------------------------------|
| LED1 | Red | Blinking | Data is being transmitted |
|--------+--------+----------+-------------------------------|
| LED1 | Red | Off | Data is not being transmitted |
|--------+--------+----------+-------------------------------|
| LED2 | Green | Blinking | Data is being received |
|--------+--------+----------+-------------------------------|
| LED2 | Green | Off | Data is not being received |
+------------------------------------------------------------+
