# XIRCOM, INC.
CREDITCARD NETWAVE ADAPTER
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus PCMCIA Type II
Topology Unidentified
Wiring Type Wireless
Boot ROM Not available

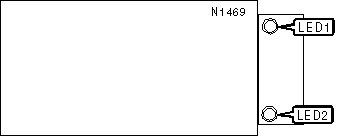

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Green | On | Network connection is good to a |
| | | | Netwave access point |
|------+-------+----------+----------------------------------|
| LED1 | Green | Blinking | Network connection is good to an |
| | | | "ad hoc" Netwave network |
|------+-------+----------+----------------------------------|
| LED1 | Green | Off | Network connection is broken |
|------+-------+----------+----------------------------------|
| LED2 | Amber | Blinking | Data is being |
| | | | transmitted/received |
|------+-------+----------+----------------------------------|
| LED2 | Amber | Off | Data is not being |
| | | | transmitted/recieved |
+------------------------------------------------------------+
