# ZNYX CORPORATION
ZX312 ETHERARRAY REV.2
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 32-bit PCI
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM Not available

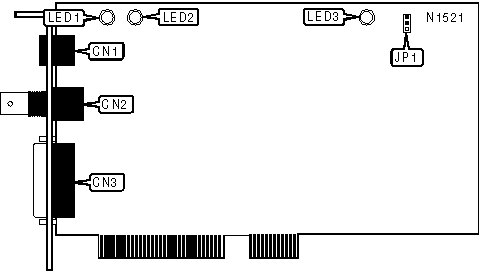

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Unshielded twisted | CN1 | AUI transceiver via | CN3 |
| pair port | | DB-15 port | |
|--------------------+-------+-----------------------+-------|
| RG-58A/U 50ohm | CN2 | | |
| coaxial port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE SELECTION |
|------------------------------------------------------------|
| Type | JP1 |
|--------------------------------+---------------------------|
| AUI transceiver via DB-15 port | Pins 1 & 2 closed |
|--------------------------------+---------------------------|
| RG-58A/U coaxial | Pins 2 & 3 closed |
|--------------------------------+---------------------------|
| Unshielded twisted pair | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Green | On | Data is being |
| | | | transmitted/received |
|------+--------+--------+-----------------------------------|
| LED1 | Green | Off | Data is not being |
| | | | transmitted/received |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | On | Network connection is good |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | Off | Network connection is broken |
|------+--------+--------+-----------------------------------|
| LED3 | Yellow | On | BNC power is on |
|------+--------+--------+-----------------------------------|
| LED3 | Yellow | Off | BNC power is off |
+------------------------------------------------------------+
