# XIRCOM, INC.
NETWAVE ACCESS POINT FOR ETHERNET
NIC Type Proprietary wireless
Chip Set Unidentified
Maximum Onboard Memory 512KB SRAM/256K flash RAM
Data Bus PCMCIA Type II
Network Transfer Rate 1Mbps
Topology Star/Peer-to-peer
Wiring Type N/A
Boot ROM Not available
IMG IMG 1
+------------------------------------------------------------+

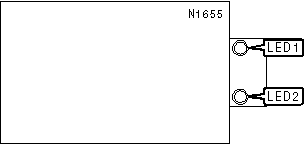

| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Installation | Condition |
|------+-------+----------+--------------+-------------------|
| LED1 | Green | On | Computer | Radio connection |
| | | | | to Access Point |
|------+-------+----------+--------------+-------------------|
| LED1 | Green | On | Access Point | Radio connection |
| | | | | to at least one |
| | | | | computer |
|------+-------+----------+--------------+-------------------|
| LED1 | Green | Off | Computer | No radio |
| | | | | connection to |
| | | | | Access Point |
|------+-------+----------+--------------+-------------------|
| LED1 | Green | Off | Access Point | No radio |
| | | | | connection to a |
| | | | | computer |
|------+-------+----------+--------------+-------------------|
| LED1 | Green | Blinking | Computer | Radio connection |
| | | | | directly to |
| | | | | another computer |
|------+-------+----------+--------------+-------------------|
| LED2 | Amber | Blinking | Either | Network is |
| | | | | transmitting or |
| | | | | receiving |
|------+-------+----------+--------------+-------------------|
| LED2 | Amber | Off | Either | Network is not |
| | | | | transmitting or |
| | | | | receiving |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| This card can be installed into either a computer’s |
| PCMCIA slot or the PCMCIA slot on a Xircom Access |
| Point module. |
+------------------------------------------------------------+
