# ZEITNET, INC.
Z-ATM SBUS (ZN1215)
NIC Type ATM
Data Bus SBus
Network Transfer Rate 155Mbps
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Not available

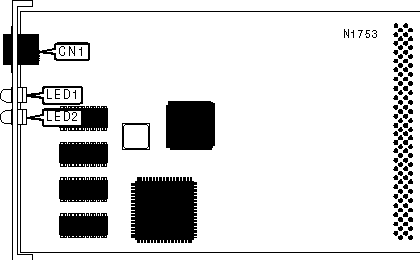

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-----------------------------------+------------------------|
| Unshielded twisted pair connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Green | On | Network connection is good |
|------+--------+--------+-----------------------------------|
| LED1 | Green | Off | Network connection is broken |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | On | Frame error has been detected |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | Off | Frame error has not been detected |
+------------------------------------------------------------+
