# XIRCOM, INC.
CE3-100BTX
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10/100Mbps
Topology Star
Wiring Type Unshielded twisted pair
Data Bus PCMCIA Type II
IMG IMG 1
+------------------------------------------------------------+

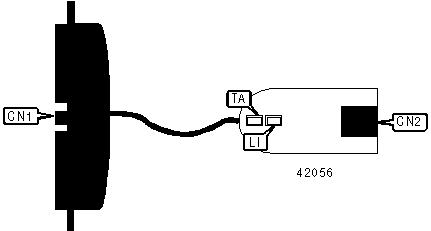

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------+-------+-------------------------+-------|
| 68-pin connector | CN1 | RJ-45 unshielded | CN2 |
| | | twisted pair | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------+--------+------------------------------------|
| TA | Yellow | On | Data is being transmitted/received |
|-----+--------+--------+------------------------------------|
| TA | Yellow | Off | Data is not being |
| | | | transmitted/received |
|-----+--------+--------+------------------------------------|
| LI | Green | On | 10Base-T UTP link is good |
|-----+--------+--------+------------------------------------|
| LI | Green | Off | 10Base-T UTP link is broken |
|-----+--------+--------+------------------------------------|
| LI | Orange | On | 100Base-TX UTP link is good |
|-----+--------+--------+------------------------------------|
| LI | Orange | Off | 100Base-TX UTP link is broken |
+------------------------------------------------------------+
