# AIWA AMERICA, INC.
8 GB TAPE DRIVE
Device Type Internal Tape Drive
Interface SCSI
Format 4mm, DDS
Sustained Transfer Rate 800 KBPS
Size 5.25 in. half height

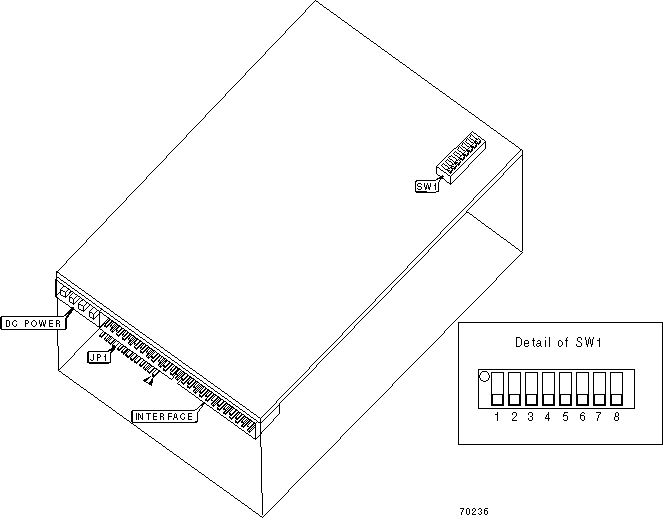

View Bottom
IMG IMG 1
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-------------------------------+-------------+--------------|
| » | Factory configured - do | JP1/Pin 9 | Unidentified |
| | not alter | | |
|----+--------------------------+-------------+--------------|
| » | Compression enabled | JP1/Pins 10 | Open |
| | | & 11 | |
|----+--------------------------+-------------+--------------|
| | Compression disabled | JP1/Pins 10 | Closed |
| | | & 11 | |
|----+--------------------------+-------------+--------------|
| » | Termination enabled | JP1/Pins 12 | Open |
| | | & 13 | |
|----+--------------------------+-------------+--------------|
| » | Termination disabled | JP1/Pins 12 | Closed |
| | | & 13 | |
|----+--------------------------+-------------+--------------|
| » | Factory configured - do | SW1/1 | Off |
| | not alter | | |
|----+--------------------------+-------------+--------------|
| » | Factory configured - do | SW1/2 | Off |
| | not alter | | |
|----+--------------------------+-------------+--------------|
| » | Factory configured - do | SW1/3 | Off |
| | not alter | | |
|----+--------------------------+-------------+--------------|
| » | Factory configured - do | SW1/4 | Off |
| | not alter | | |
|----+--------------------------+-------------+--------------|
| » | Factory configured - do | SW1/5 | Off |
| | not alter | | |
|----+--------------------------+-------------+--------------|
| » | Factory configured - do | SW1/6 | Off |
| | not alter | | |
|----+--------------------------+-------------+--------------|
| » | Factory configured - do | SW1/7 | Off |
| | not alter | | |
|----+--------------------------+-------------+--------------|
| | Media Recognition System | SW1/8 | Off |
| | enabled | | |
|----+--------------------------+-------------+--------------|
| | Media Recognition System | SW1/8 | On |
| | disabled | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRIVE SELECT ID |
|------------------------------------------------------------|
| Drive ID | JP1/Pins 3 & 4 | JP1/Pins 5 & 6 | JP1/Pins 7 & |
| | | | 8 |
|----------+----------------+----------------+---------------|
| | 0 | Open | Open | Open |
|-----+----+----------------+----------------+---------------|
| » | 1 | Open | Open | Closed |
|-----+----+----------------+----------------+---------------|
| | 2 | Open | Closed | Open |
|-----+----+----------------+----------------+---------------|
| | 3 | Open | Closed | Closed |
|-----+----+----------------+----------------+---------------|
| | 4 | Closed | Open | Open |
|-----+----+----------------+----------------+---------------|
| | 5 | Closed | Open | Closed |
|-----+----+----------------+----------------+---------------|
| | 6 | Closed | Closed | Open |
|-----+----+----------------+----------------+---------------|
| | 7 | Closed | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TERMINATION POWER SELECTION |
|------------------------------------------------------------|
| Setting | JP1/Pins 1 & 2 |
|-------------------------------------------+----------------|
| » TERMPWR supplied by SCSI interface to | Open |
| drive | |
|-------------------------------------------+----------------|
| TERMPWR supplied by drive | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MANUFACTURERS RECOMMENDED MEDIA |
|------------------------------------------------------------|
| Tape | Capacity Without | Capacity With |
| | Compression | Compression |
|----------+-------------------------+-----------------------|
| 90m DDS | 2GB | 4GB |
|----------+-------------------------+-----------------------|
| 120m DDS | 4GB | 8GB |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+

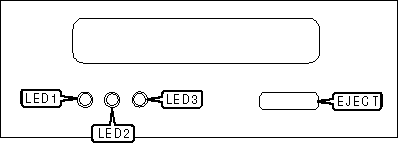

| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | On | SCSI bus is active |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Off | SCSI bus is not active |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | On | Tape is loaded in drive |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Off | No tape is loaded in |
| | | | drive |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Blinking | The tape is being |
| | | | accessed by the dive |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | On | Drive requires cleaning |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | Blinking | Cleaning cartridge is |
| | | | loaded in drive |
+------------------------------------------------------------+
