# HEWLETT-PACKARD COMPANY
HP C1537A
Device Type Internal Tape Drive
Interface SCSI-2
Format DAT, DDS, DDS-2, DDS-3, DDS-DC, DCLZ
Sustained Transfer Rate 1 MBPS (native), 2 MBPS (compressed)
Size 5.25 in. half height

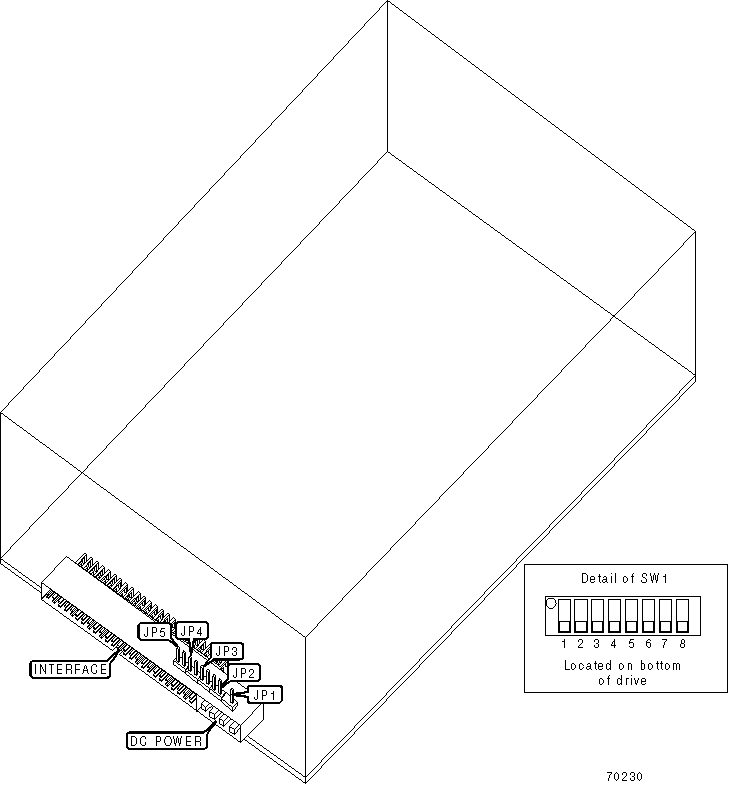

View Top
IMG IMG 1
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Media Recognition System | SW1/3 | On |
| | disabled | | |
|---+---------------------------------+-------+--------------|
| | Media Recognition System | SW1/3 | Off |
| | enabled | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/4 | On |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/5 | On |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/6 | On |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/7 | On |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/8 | On |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRIVE SELECT ID |
|------------------------------------------------------------|
| Drive ID | JP2 | JP3 | JP4 |
|---------------+--------------+--------------+--------------|
| 0 | Open | Open | Open |
|---------------+--------------+--------------+--------------|
| 1 | Closed | Open | Open |
|---------------+--------------+--------------+--------------|
| 2 | Open | Closed | Open |
|---------------+--------------+--------------+--------------|
| » 3 | Closed | Closed | Open |
|---------------+--------------+--------------+--------------|
| 4 | Open | Open | Closed |
|---------------+--------------+--------------+--------------|
| 5 | Closed | Open | Closed |
|---------------+--------------+--------------+--------------|
| 6 | Open | Closed | Closed |
|---------------+--------------+--------------+--------------|
| 7 | Closed | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION SETTINGS |
|------------------------------------------------------------|
| Function | SW1/1 | SW1/2 |
|--------------------------------------------+-------+-------|
| » Compression with software control | On | On |
| enabled | | |
|--------------------------------------------+-------+-------|
| Compression without software control | On | Off |
| enabled | | |
|--------------------------------------------+-------+-------|
| Compression with software control disabled | Off | On |
|--------------------------------------------+-------+-------|
| Compression without software control | Off | Off |
| enabled | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TERMINATION POWER SELECTION |
|------------------------------------------------------------|
| Setting | JP5 |
|-----------------------------------------------+------------|
| » TERMPWR supplied by SCSI interface to drive | Open |
|-----------------------------------------------+------------|
| TERMPWR supplied by drive | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MANUFACTURERS RECOMMENDED MEDIA |
|------------------------------------------------------------|
| Tape | Capacity Without | Capacity With |
| | Compression | Compression |
|------------+------------------------+----------------------|
| 60m DDS | 1.3GB | 2.6GB |
|------------+------------------------+----------------------|
| 90m DDS | 2GB | 4GB |
|------------+------------------------+----------------------|
| 120m DDS-2 | 4GB | 8GB |
|------------+------------------------+----------------------|
| 125m DDS-3 | 12GB | 24GB |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Green | On | Cartridge present, drive active |
|------+--------+----------+---------------------------------|
| LED1 | Green | Slow | Cartridge loading or unloading |
| | | Blinking | |
|------+--------+----------+---------------------------------|
| LED1 | Green | Fast | Cartridge is being read or |
| | | Blinking | written to |
|------+--------+----------+---------------------------------|
| LED1 | Green | Off | No power/drive Idle, no |
| | | | cartridge |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | On | Drive fault detected |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | Blinking | Drive cleaning required |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | Off | No drive fault detected |
+------------------------------------------------------------+
