# SEAGATE TECHNOLOGY, INC.
MAYNSTREAM 2000 INTERNAL
Device Type Internal Tape Drive
Interface SCSI
Format DDS
Sustained Transfer Rate 183 KBPS
Size 5.25 in. half height

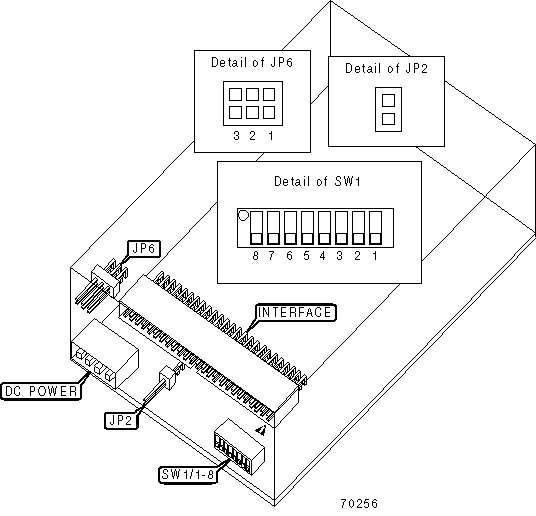

View Top
IMG IMG 1
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|---------------------------------------+--------+-----------|
| » | SCSI 2 mode enabled | SW1/4 | On |
|---+-----------------------------------+--------+-----------|
| | SCSI 1 mode enabled | SW1/4 | Off |
|---+-----------------------------------+--------+-----------|
| » | Parity check disabled | SW1/5 | Off |
|---+-----------------------------------+--------+-----------|
| | Parity check enabled | SW1/5 | On |
|---+-----------------------------------+--------+-----------|
| » | Factory configured - do not alter | SW1/6 | Reserved |
|---+-----------------------------------+--------+-----------|
| » | Factory configured - do not alter | SW1/7 | Reserved |
|---+-----------------------------------+--------+-----------|
| » | Self-Test disabled | SW1/8 | Off |
|---+-----------------------------------+--------+-----------|
| | Self-Test enabled | SW1/8 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCSI ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | SW1/1 | SW1/2 | SW1/3 |
|----------------+--------------+--------------+-------------|
| » | 0 | Off | Off | Off |
|----+-----------+--------------+--------------+-------------|
| | 1 | On | Off | Off |
|----+-----------+--------------+--------------+-------------|
| | 2 | Off | On | Off |
|----+-----------+--------------+--------------+-------------|
| | 3 | On | On | Off |
|----+-----------+--------------+--------------+-------------|
| | 4 | Off | Off | On |
|----+-----------+--------------+--------------+-------------|
| | 5 | On | Off | On |
|----+-----------+--------------+--------------+-------------|
| | 6 | Off | On | On |
|----+-----------+--------------+--------------+-------------|
| | 7 | On | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REMOTE SCSI ADDRESS SELECTION |
|------------------------------------------------------------|
| SCSI ID | JP6/1 | JP6/2 | JP6/3 |
|------------------+-----------------+-----------+-----------|
| » | 0 | Off | Off | Off |
|--------+---------+-----------------+-----------+-----------|
| | 1 | On | Off | Off |
|--------+---------+-----------------+-----------+-----------|
| | 2 | Off | On | Off |
|--------+---------+-----------------+-----------+-----------|
| | 3 | On | On | Off |
|--------+---------+-----------------+-----------+-----------|
| | 4 | Off | Off | On |
|--------+---------+-----------------+-----------+-----------|
| | 5 | On | Off | On |
|--------+---------+-----------------+-----------+-----------|
| | 6 | Off | On | On |
|--------+---------+-----------------+-----------+-----------|
| | 7 | On | On | On |
|------------------------------------------------------------|
| Note: To use the remote SCSI address port, set SW1/1, |
| SW1/2, and SW1/3 to the Off position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TERMINATION POWER SELECTION |
|------------------------------------------------------------|
| Setting | JP2 |
|-----------------------------------+------------------------|
| » | TERMPWR disabled | Open |
|---+-------------------------------+------------------------|
| | TERMPWR enabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MANUFACTURERS RECOMMENDED MEDIA |
|------------------------------------------------------------|
| Tape | Capacity |
|------------------------------+-----------------------------|
| 90-meter DDS DAT cartridge | 2.0GB |
+------------------------------------------------------------+
