# HEWLETT-PACKARD COMPANY
HP SURESTORE CD-WRITER PLUS 7110I,
HP C4365A
Device Type Internal CD-ROM
Interface ATAPI,
Spin Rate 1x, 2x, 6x (read), 1x, 2x (write)
Formats Supported CD-XA, CD-DA, CD-I, red & yellow book, green
book

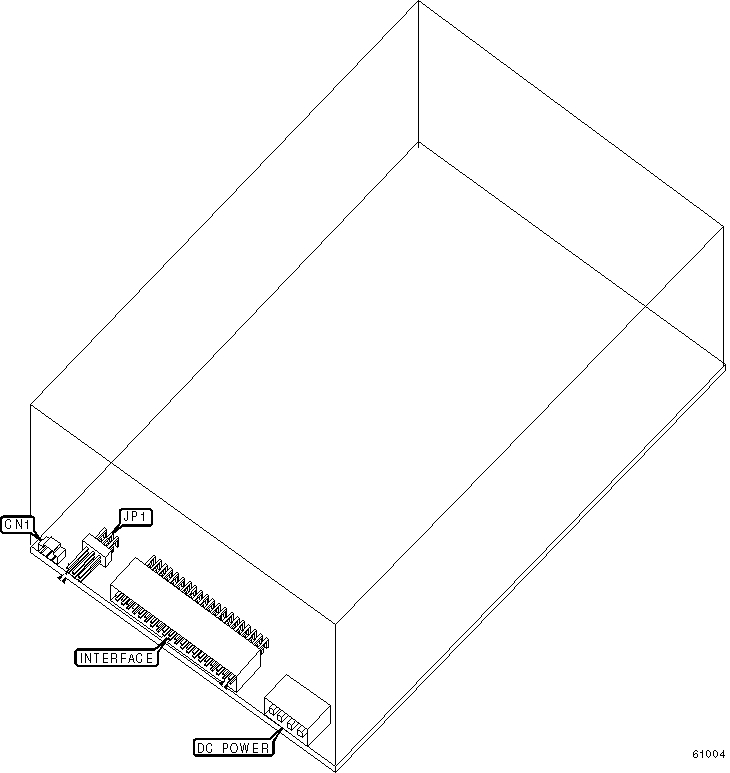

View Top
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Audio line out | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|------------------------------------+------------+----------|
| ยป | Factory configured - do not | JP1/jumper | Open |
| | alter | 1 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ATAPI MASTER/SLAVE |
|------------------------------------------------------------|
| Setting | JP1/jumper 2 | JP1/jumper 3 |
|---------------------------+----------------+---------------|
| Single drive only | Open | Closed |
|---------------------------+----------------+---------------|
| Slave in two drive system | Closed | Open |
+------------------------------------------------------------+
