# IBM CORPORATION
CD651
Device Type CD-ROM
Interface ATAPI
Spin Rate Unidentified
Formats Supported CD-DA, CD-ROM (Mode 1 & Mode 2), Red &
Read Yellow Book

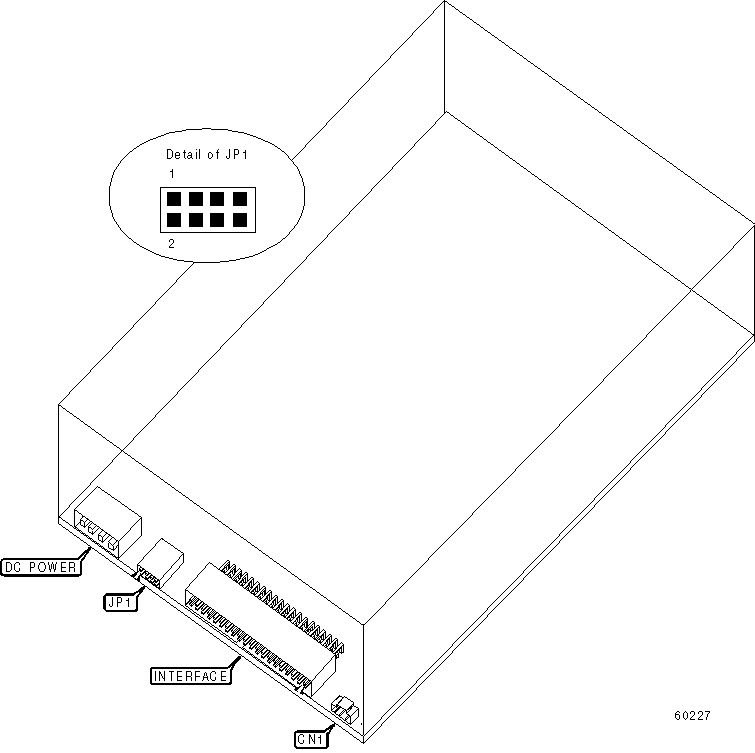

View Top
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| CD Audio in | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | Factory configured - do not alter. | JP1 | Pins 1 & |
| | (Drive number select) | | 2 closed |
+------------------------------------------------------------+
