# LITE-ON COMMUNICATIONS, INC.
ATAPI/EIDE 24x/20x
Device Type CD-ROM
Interface ATAPI
Spin Rate 12x/20x/24x
Formats Supported CD-XA, CD-DA, CD-I/FMV, CD-ROM (Mode 1 &
Read Mode 2), Photo-CD, Video CD, Red & Yellow
Book, Karaoke CD, CD Extra

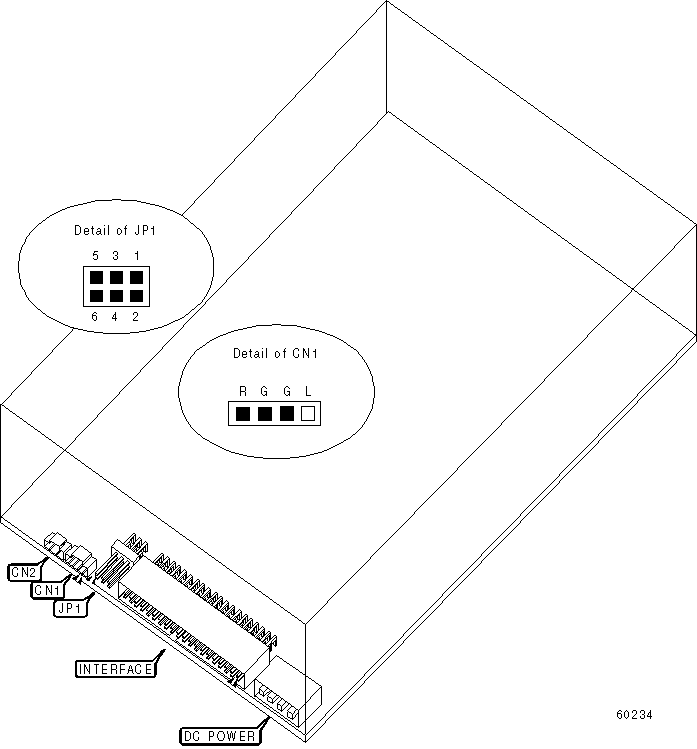

View Top
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| CD Audio out | CN1 | Digital output | CN2 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ATAPI MASTER/SLAVE |
|------------------------------------------------------------|
| Setting | JP1 |
|----------------------------+-------------------------------|
| Master | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| Slave | Pins 3 & 4 closed |
|----------------------------+-------------------------------|
| Cable select | Pins 5 & 6 closed |
+------------------------------------------------------------+
