# I/O MAGIC CORPORATION
MAGICSPIN EIDE
Device Type CD-ROM
Interface ATAPI
Spin Rate Unidentified
Formats Supported CD-XA, CD-DA, CD-I/FMV, CD-ROM (Mode 1 &
Read Mode 2), Photo-CD, Video CD, Red & Yellow
Book, CD-Extra, Karaoke CD

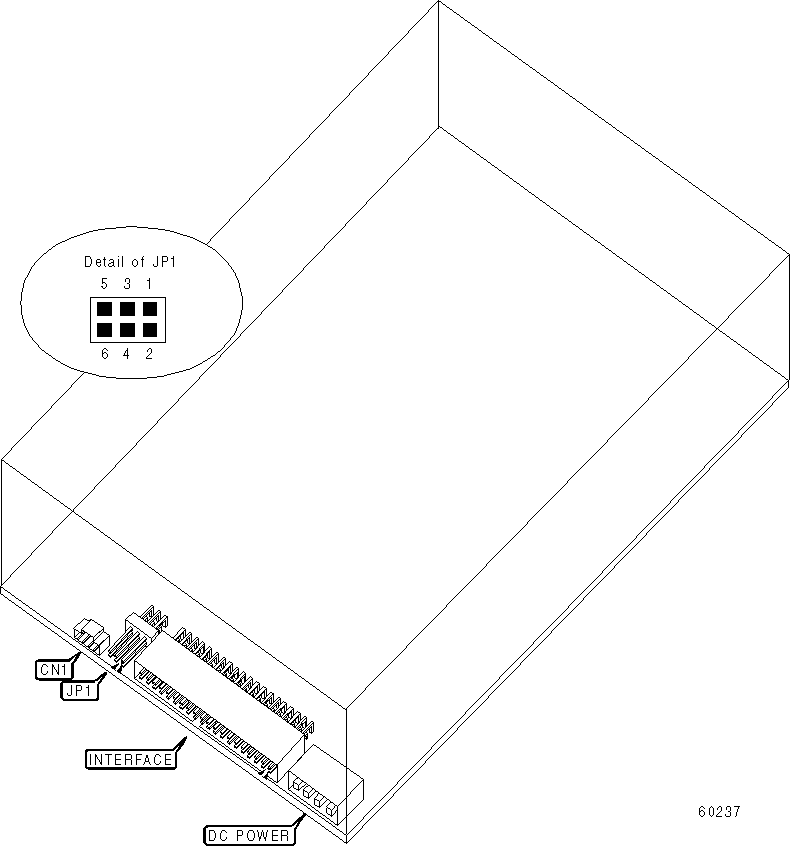

View Top
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Audio out connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ATAPI MASTER/SLAVE |
|------------------------------------------------------------|
| Setting | JP1 |
|----------------------------+-------------------------------|
| Master | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| Slave | Pins 3 & 4 closed |
|----------------------------+-------------------------------|
| Cable select | Pins 5 & 6 closed |
+------------------------------------------------------------+
