# NEWCOM, INC.
12X ATAPI CD-ROM
Device Type CD-ROM
Interface ATAPI
Spin Rate 12x
(Read/Write)
Formats Supported CD-DA, CD-ROM (Mode 1 & Mode 2), Photo-CD,
Read Video CD, Red & Yellow Book, CD-Extra,
Karaoke CD

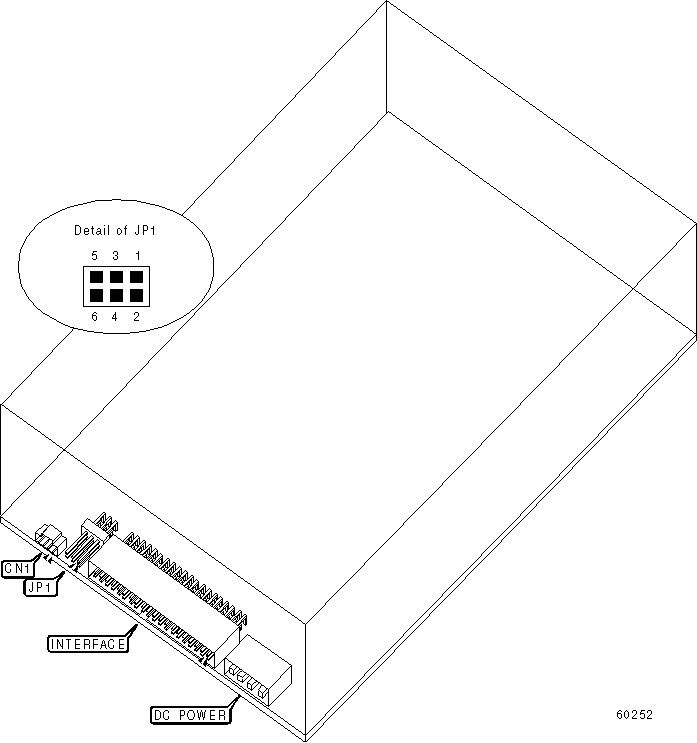

View Top
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Analog audio out | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ATAPI MASTER/SLAVE |
|------------------------------------------------------------|
| Setting | JP1 |
|----------------------------------------+-------------------|
| Drive is master | Pins 1 & 2 closed |
|----------------------------------------+-------------------|
| Drive is slave | Pins 3 & 4 closed |
|----------------------------------------+-------------------|
| Master/slave determined by cable | Pins 5 & 6 closed |
| select | |
+------------------------------------------------------------+
