# SONY CORPORATION
CDU611-1R, CDU611-2R
Device Type CD-ROM
Interface ATAPI
Spin Rate 10x-24x Variable (CDU611-1R)
(Read/Write)
Formats Supported CD-XA, CD-DA, CD-I, CD-I Ready, CD-Bridge,
Read CD-ROM (Mode 1 & Mode 2), Photo-CD (single &
multi session), Video CD, Red & Yellow Book

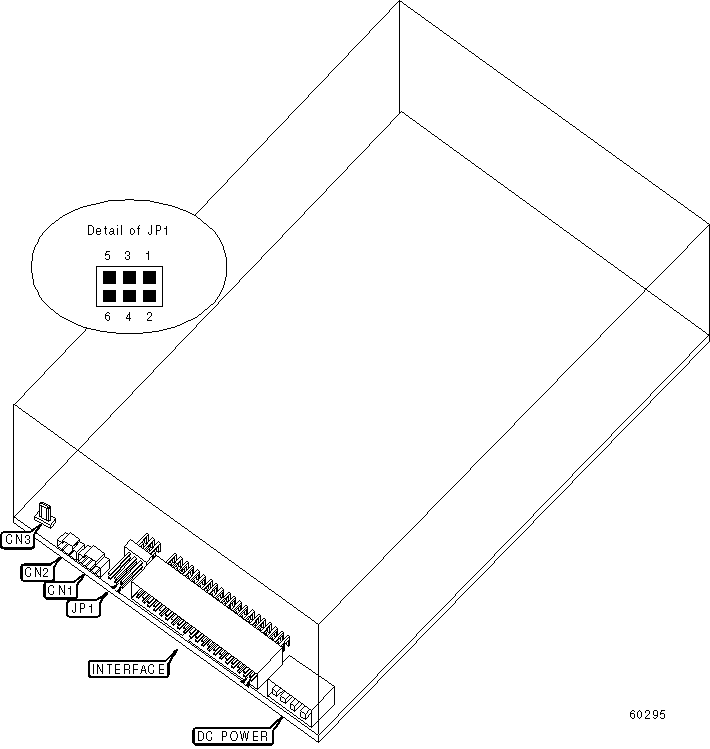

View Top
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| Audio out connector | CN1 | Ground connector | CN3 |
|-------------------------+-------+------------------+-------|
| Digital audio out | CN2 | | |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ATAPI MASTER/SLAVE |
|------------------------------------------------------------|
| Setting | JP1 |
|----------------------------------------+-------------------|
| Drive is master | Pins 1 & 2 closed |
|----------------------------------------+-------------------|
| Drive is slave | Pins 3 & 4 closed |
|----------------------------------------+-------------------|
| Master/slave determined by cable | Pins 5 & 6 closed |
| select | |
+------------------------------------------------------------+
