# SIEMENS NIXDORF
H376
Device Type Internal CD-ROM
Interface IDE(AT)
Spin Rate (Read) 32x
Formats Supported CD-XA, CD-R, CD-RW, CD-I, CD-ROM (Mode 1 &
Read Mode 2), ISO 9660, Photo-CD, Video CD, Red &
Yellow Book, CD-Plus, Multi-session

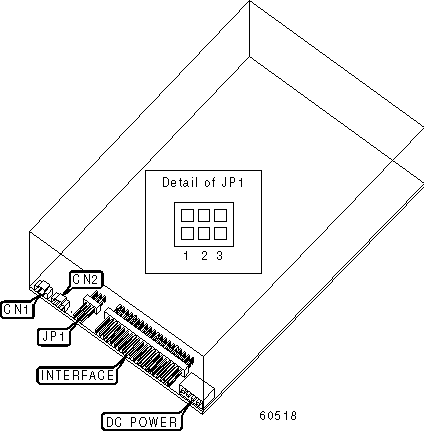

View Top
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| Digital audio line out | CN1 | Audio line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MASTER/SLAVE SELECTION |
|------------------------------------------------------------|
| Setting | JP1/1 | JP1/2 | JP1/3 |
|---------------------------------+--------+--------+--------|
| Master in two drive system | Open | Open | Closed |
|---------------------------------+--------+--------+--------|
| Slave in two drive system | Open | Closed | Open |
|---------------------------------+--------+--------+--------|
| Master/slave determined by | Closed | Open | Open |
| cable select | | | |
+------------------------------------------------------------+
