# 3COM CORPORATION
IMPACT (3C861, 3C862)
Card Type ISDN TA
Processor Motorola 68302
Processor Speed 20MHz
Chip Set Siemens 2081
Maximum Onboard Memory 1MB DRAM
Transfer Rate 56Kbps x 2/64Kbps x 2
Data Bus 16-bit ISA
ISDN Protocol V.120, PPP
Switch Type 5ESS, DMS100, EWSD, NI-1
Error Correction/Compression STAC
Card Size Full-height, full-length

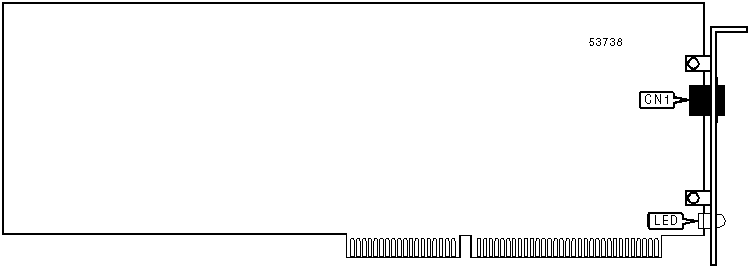

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| ISDN interface | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| All jumpers on the card are factory configured and |
| should not be altered. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+---------+----------------------------|
| LED | Unidentified | On | ISDN connection is good |
|------+--------------+---------+----------------------------|
| LED | Unidentified | Off | ISDN connection is broken |
+------------------------------------------------------------+
