# AST RESEARCH, INC.
ADVANTAGE! PLUS FAX/MODEM (240037-001)
Modem Type Data (Asynchronous)/Fax
Maximum Data Rate 2400 bps
Maximum Fax Rate Unidentified
Data Bus 8-bit ISA
Fax Class Unidentified
Data Modulation Protocol Unidentified
Fax Modulation Protocol Unidentified
Error Correction/Compression Unidentified

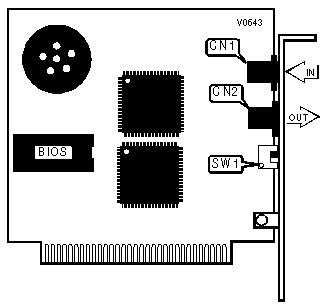

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COM PORT SETTINGS |
|------------------------------------------------------------|
| COM | SW1/1 | SW1/2 |
|-------------------+--------------------+-------------------|
| COM1 | On | On |
|-------------------+--------------------+-------------------|
| COM2 | On | Off |
|-------------------+--------------------+-------------------|
| COM3 | Off | On |
|-------------------+--------------------+-------------------|
| COM4 | Off | Off |
+------------------------------------------------------------+
