# AST RESEARCH, INC.
G-4 ADVANTAGE! PLUS FAX/MODEM
Modem Type Data (Asynchronous)/Fax
Maximum Data Rate 2400 bps
Maximum Fax Rate Unidentified
Data Bus 8-bit ISA
Fax Class Class 2
Data Modulation Protocol Unidentified
Fax Modulation Protocol Unidentified
Error Correction/Compression Unidentified

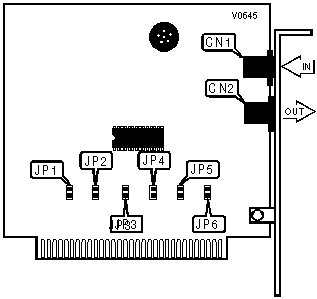

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COM PORT/INTERRUPT SETTINGS |
|------------------------------------------------------------|
| COM | JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
|---------+--------+--------+--------+-------+-------+-------|
|COM1/IRQ4| Closed | Open | Closed |Closed | Open | Open |
|---------+--------+--------+--------+-------+-------+-------|
|COM2/IRQ3| Closed | Open | Open | Open |Closed |Closed |
|---------+--------+--------+--------+-------+-------+-------|
|COM3/IRQ4| Open | Closed | Closed |Closed | Open | Open |
|---------+--------+--------+--------+-------+-------+-------|
|COM4/IRQ3| Open | Closed | Open | Open |Closed |Closed |
+------------------------------------------------------------+
