# ATI TECHNOLOGIES, INC.
14400 ETC-I/19200 ETC-I
Modem Type Data (synchronous/asynchronous)
Maximum Data Rate 19.2Kbps
Maximum Fax Rate 19.2Kbps
Data Bus 8-bit ISA
Fax Class Class 1
Data Modulation Bell 103 & 212A
Protocol
ITU-T V.21, V.22, V.22bis, V.32,
V.32ter
Fax Modulation GRP III
Protocol
Error MNP 2 - 5, ITU-T V.42, V.42bis
Correction/Compression

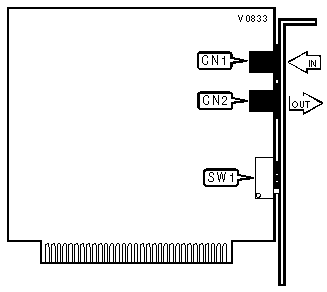

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Line-out | CN2 | Line-out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MODEM ENABLE/DISABLE |
|------------------------------------------------------------|
| í Setting | SW1/1 |
|-------------------------------+----------------------------|
| » Enabled | On |
|-------------------------------+----------------------------|
| í Disabled | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ADDRESS SELECT |
|------------------------------------------------------------|
| í COM/Address | SW1/2 | SW1/3 |
|--------------------+-------------------+-------------------|
| í COM1/3F8h | Off | Off |
|--------------------+-------------------+-------------------|
| » COM2/2F8h | Off | On |
|--------------------+-------------------+-------------------|
| í COM3/3E8h | On | Off |
|--------------------+-------------------+-------------------|
| í COM4/2E8h | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECT |
|------------------------------------------------------------|
| í í IRQ | SW1/4 | SW1/5 |
|--------------------+-------------------+-------------------|
| í IRQ2 | Off | Off |
|--------------------+-------------------+-------------------|
| í IRQ3 | Off | On |
|--------------------+-------------------+-------------------|
| » IRQ4 | On | Off |
|--------------------+-------------------+-------------------|
| í IRQ5 | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| S89 - PROPRIETARY BIT-MAPPED REGISTER |
|------------------------------------------------------------|
| Value Range: | Bit-mapped |
|---------------------+--------------------------------------|
| Default: | 254 (19200 ETC-I) |
| | |
| | 62 (14400 ETC-I) |
|---------------------+--------------------------------------|
| Type: | Read/Write |
|---------------------+--------------------------------------|
| In Stored Profile?: | Yes |
|---------------------+--------------------------------------|
| Description: | Bit-mapped configuration register. |
|------------------------------------------------------------|
| Bit | Value | Function |
|-------------+-----------+----------------------------------|
| 0 | » 0 | Not used |
|-------------+-----------+----------------------------------|
| 1 | » 1 | 4800bps data rate enabled. |
| | | |
| | í 0 | 4800bps data rate disabled. |
|-------------+-----------+----------------------------------|
| 2 | » 1 | 7200bps data rate enabled. |
| | | |
| | í 0 | 7200bps data rate disabled. |
|-------------+-----------+----------------------------------|
| 3 | » 1 | 9600bps data rate enabled. |
| | | |
| | í 0 | 9600bps data rate disabled. |
|-------------+-----------+----------------------------------|
| 4 | » 1 | 12.0Kbps data rate enabled. |
| | | |
| | í 0 | 12.0Kbps data rate disabled. |
|-------------+-----------+----------------------------------|
| 5 | » 1 | 14.4Kbps data rate enabled. |
| | | |
| | í 0 | 14.4Kbps data rate disabled. |
|-------------+-----------+----------------------------------|
| 6 | » 1 | 16.8Kbps data rate enabled. |
| | | |
| | í 0 | 16.8Kbps data rate disabled. |
|-------------+-----------+----------------------------------|
| 7 | » 1 | 19.2Kbps data rate enabled. |
| | | |
| | í 0 | 19.2Kbps data rate disabled. |
|------------------------------------------------------------|
| Note: Bits 6 & 7 apply to the 19200 ETC-I only. |
+------------------------------------------------------------+
