# BEST DATA PRODUCTS, INC.
SMART ONE 1200B
Modem Type Data (asynchronous)
Maximum Data Rate 1200bps
Maximum Fax Rate N/A
Data Bus 8-bit ISA
Fax Class N/A
Data Modulation Protocol Bell 103 & 212
Fax Modulation Protocol N/A
Error Correction/Compression Unidentified

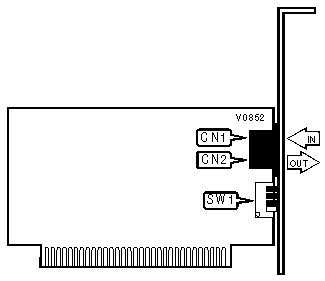

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Line-in | CN1 | Line-out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| COM/IRQ | SW1/1 | SW1/4 |
|--------------------+-------------------+-------------------|
| í COM2/IRQ3 | Off | On |
|--------------------+-------------------+-------------------|
| COM1/IRQ4 | On | On |
|--------------------+-------------------+-------------------|
| COM3/IRQ3 | On | On |
|--------------------+-------------------+-------------------|
| COM4/IRQ4 | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-ANSWER FEATURE |
|------------------------------------------------------------|
| Setting | SW1/3 |
|-----------------------------------+------------------------|
| í Enabled | On |
|-----------------------------------+------------------------|
| Disabled (answer on command only) | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA TERMINAL READY (DTR) |
|------------------------------------------------------------|
| Setting | SW1/4 |
|-------------------------------+----------------------------|
| í Controllable DTR | On |
|-------------------------------+----------------------------|
| DTR low only | Off |
+------------------------------------------------------------+
