# ASPEN TECHNOLOGIES, INC.
Modem Type Data (synchronous/asynchronous)/Fax
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Bus External
Fax Class Class I & II
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
IMG IMG 1
+------------------------------------------------------------+

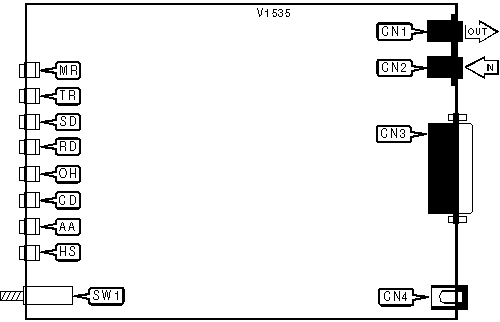

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Line out | CN1 | DC power | CN4 |
|------------------+----------+-------------------+----------|
| Line in | CN2 | Power switch | SW1 |
|------------------+----------+-------------------+----------|
| RS-232/422 | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+-------+----------+-----------------------------------|
| MR | Red | On | Power is on |
|-----+-------+----------+-----------------------------------|
| MR | Red | Off | Power is off |
|-----+-------+----------+-----------------------------------|
| TR | Red | On | DTR signal is high |
|-----+-------+----------+-----------------------------------|
| TR | Red | Off | DTR signal is low |
|-----+-------+----------+-----------------------------------|
| SD | Red | Blinking | Modem is transmitting data |
|-----+-------+----------+-----------------------------------|
| SD | Red | Off | Modem is not transmitting data |
|-----+-------+----------+-----------------------------------|
| RD | Red | Blinking | Modem is receiving data |
|-----+-------+----------+-----------------------------------|
| RD | Red | Off | Modem is not receiving data |
|-----+-------+----------+-----------------------------------|
| OH | Red | On | Modem is off-hook |
|-----+-------+----------+-----------------------------------|
| OH | Red | Off | Modem is on-hook |
|-----+-------+----------+-----------------------------------|
| CD | Red | On | Carrier signal detected |
|-----+-------+----------+-----------------------------------|
| CD | Red | Off | Carrier signal not detected |
|-----+-------+----------+-----------------------------------|
| AA | Red | On | Auto-answer enabled |
|-----+-------+----------+-----------------------------------|
| AA | Red | Off | Auto-answer disabled |
|-----+-------+----------+-----------------------------------|
| AA | Red | Blinking | Phone is ringing |
|-----+-------+----------+-----------------------------------|
| HS | Red | Blinking | Modem is in test mode or detected |
| | | | an error |
|-----+-------+----------+-----------------------------------|
| HS | Red | On | Modem is operating at 9600bps or |
| | | | faster |
|-----+-------+----------+-----------------------------------|
| HS | Red | Off | Modem is not operating faster |
| | | | than 9600bps |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| ACCEPT RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \U [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \U B1<CR> |
|--------------+---------------------------------------------|
| Description: | Accepts remote modem’s request for reliable |
| | link. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-RETRAIN |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT %En |
|--------------+---------------------------------------------|
| Example: | AT %E1 <CR> |
|--------------+---------------------------------------------|
| Description: | Selects auto-retrain mode. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| » %E0 | Auto-retrain disabled. |
|--------------+---------------------------------------------|
| %E1 | Auto-retrain enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BTI-MAPPED REGISTERS |
|------------------------------------------------------------|
| Register | Default |
|----------------------------+-------------------------------|
| S14 | Unidentified |
|----------------------------+-------------------------------|
| S21 | Unidentified |
|----------------------------+-------------------------------|
| S22 | Unidentified |
|----------------------------+-------------------------------|
| S23 | Unidentified |
|----------------------------+-------------------------------|
| S27 | Unidentified |
|----------------------------+-------------------------------|
| S40 | 57 |
|----------------------------+-------------------------------|
| S41 | 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK SEND |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Bn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \B3 &W<CR> |
|--------------+---------------------------------------------|
| Default: | 3 |
|--------------+---------------------------------------------|
| Range: | 1-9 |
|--------------+---------------------------------------------|
| Unit: | .1 second |
|--------------+---------------------------------------------|
| Description: | Sends break to modem. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Kn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \K5 <CR> |
|--------------+---------------------------------------------|
| Description: | Configures action of break signal. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \K0 | Online command mode enabled, send no break |
| | to remote modem. |
|--------------+---------------------------------------------|
| \K1 | Break sent to remote modem and buffered |
| | cleared. |
|--------------+---------------------------------------------|
| \K3 | Send break to remote modem immediately. |
|--------------+---------------------------------------------|
| » \K5 | Send break with transmitted data. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Cn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %C1 <CR> |
|--------------+---------------------------------------------|
| Description: | Selects data compression. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %C0 | Data compression disabled. |
|--------------+---------------------------------------------|
| » %C1 | Data compression enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Mn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %M3 <CR> |
|--------------+---------------------------------------------|
| Description: | Selects data compression. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %M0 | Data compression disabled. |
|--------------+---------------------------------------------|
| %M1 | Data compression enabled on transmit only. |
|--------------+---------------------------------------------|
| %M2 | Data compression enabled on receive only. |
|--------------+---------------------------------------------|
| » %M3 | Data compression enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \N1 DT555-1212<CR> |
|--------------+---------------------------------------------|
| Description: | Sets connect mode. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \N0 | Normal mode enabled. |
|--------------+---------------------------------------------|
| \N1 | Direct mode enabled. |
|--------------+---------------------------------------------|
| \N2 | Reliable mode enabled. |
|--------------+---------------------------------------------|
| » \N3 | Auto-reliable mode enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONVERT TO RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Y [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \Y<CR> |
|--------------+---------------------------------------------|
| Description: | Initiates reliable mode link. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ECHO OPTIMIZATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \En [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \E1 <CR> |
|--------------+---------------------------------------------|
| Description: | Enables modem echo optimization. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \E1 | One shot optimization enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Gn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \G0 &K3<CR> |
|--------------+---------------------------------------------|
| Description: | Selects modem port flow control. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| » \G0 | Flow control disabled. |
|--------------+---------------------------------------------|
| \G1 | Flow control enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INACTIVITY TIMER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Tn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT\T0<CR> |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-90 |
|--------------+---------------------------------------------|
| Unit: | 1 minute |
|--------------+---------------------------------------------|
| Description: | Sets the length of time that the modem does |
| | not receive information before it |
| | disconnects. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL LEVEL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %L [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %L &W<CR> |
|--------------+---------------------------------------------|
| Description: | Returns recieved line signal level. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MAXIMUM BLOCK SIZE FOR TRANSMISSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \An [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \A2 &MB28800<CR> |
|--------------+---------------------------------------------|
| Description: | Sets the maximum transmittable block size. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \A0 | Maximum MNP block size is 64 characters. |
|--------------+---------------------------------------------|
| \A1 | Maximum MNP block size is 128 characters. |
|--------------+---------------------------------------------|
| » \A2 | Maximum MNP block size is 192 characters. |
|--------------+---------------------------------------------|
| \A3 | Maximum MNP block size is 256 characters. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MNP STREAM/BLOCK MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Ln [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \L1 DT555-1212<CR> |
|--------------+---------------------------------------------|
| Description: | Selects the transfer mode for MNP. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \L0 | Stream mode for MNP enabled. |
|--------------+---------------------------------------------|
| » \L1 | Block mode for MNP enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ON-LINE IN RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \O |
|--------------+---------------------------------------------|
| Example: | AT \O <CR> |
|--------------+---------------------------------------------|
| Description: | Returns to on-line and requests reliable |
| | mode connection. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT SIGNAL QUALITY |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Q [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %Q &W<CR> |
|--------------+---------------------------------------------|
| Description: | Reports signal quality. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SWITCH TO MNP MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Z [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \Z &W<CR> |
|--------------+---------------------------------------------|
| Description: | Switches to normal mode from MNP mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Format | AT [cmds] S16=n [cmds] |
|---------------+--------------------------------------------|
| Example: | ATS16=0<CR> |
|---------------+--------------------------------------------|
| Default: | 0 |
|---------------+--------------------------------------------|
| Range: | 0-125 |
|---------------+--------------------------------------------|
| Unit: | Bit-mapped |
|---------------+--------------------------------------------|
| Description: | Controls loopback tests, analog, digital, |
| | remote digital, and self tests. |
|------------------------------------------------------------|
| Bit | Value | Function |
|---------+-------+------------------------------------------|
| 0 | 0 | Local analog loopback not in progress. |
| | | |
| | 1 | Local analog loopback in progress. |
|---------+-------+------------------------------------------|
| 1 | 0 | Not used. |
|---------+-------+------------------------------------------|
| 2 | 0 | Local digital loopback not in progress. |
| | | |
| | 1 | Local digital loopback in progress. |
|---------+-------+------------------------------------------|
| 3 | 0 | Modem not in remote digital loopback. |
| | | |
| | 1 | Remote digital loopback in progress. |
|---------+-------+------------------------------------------|
| 4 | 0 | Remote digital loopback not requested. |
| | | |
| | 1 | Remote digital loopback requested. |
|---------+-------+------------------------------------------|
| 5 | 0 | Remote digital loopback w/ self-test not |
| | | in progress. |
| | 1 | |
| | | Remote digital loopback w/ self-test in |
| | | progress. |
|---------+-------+------------------------------------------|
| 6 | 0 | Local analog loopback w/ self-test not |
| | | in progress. |
| | 1 | |
| | | Local analog loopback w/ self-test in |
| | | progress. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.42bis DICTIONARY CLEAR |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %P [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %P &W<CR> |
|--------------+---------------------------------------------|
| Description: | Clears V.42bis dictionary. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.42bis DICTIONARY SIZE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Dn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %D2 &W<CR> |
|--------------+---------------------------------------------|
| Description: | Controls V.42bis dictionary size. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %D0 | 512 bytes. |
|--------------+---------------------------------------------|
| %D1 | 1024 bytes. |
|--------------+---------------------------------------------|
| » %D2 | 2048 bytes |
|--------------+---------------------------------------------|
| %D3 | 4096 bytes (one way compression only) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.42bis MAXIMUM STRING LENGTH |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Sn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %S32 <CR> |
|--------------+---------------------------------------------|
| Default: | 32 |
|--------------+---------------------------------------------|
| Range: | 6 - 64 |
|--------------+---------------------------------------------|
| Unit: | Unidentified |
|--------------+---------------------------------------------|
| Description: | Selects string size for V.42bis |
| | compression. |
+------------------------------------------------------------+
