# BOCA RESEARCH, INC.
BOCA OFFICE COMMUNICATOR V.34 (FDVSP34I)
Card Type Modem/speakerphone
Chip Set Unidentified
Maximum Data Rate 28.8Kbps
Maximum Fax Rate 14.4Kbps
Data Bus 8 bit ISA
Fax Class Class I & II
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.32,
V.32bis, V.34
Rockwell V.FC
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
IMG IMG 1
+------------------------------------------------------------+

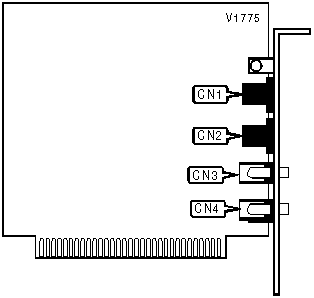

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line in | CN1 | Microphone | CN3 |
|-----------------------------+----------+------------+------|
| Line out | CN2 | Speaker | CN4 |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO RETRAIN FALLBACK/FALLFORWARD |
|------------------------------------------------------------|
| Type | Configuration |
|-------------+----------------------------------------------|
| Format | AT [cmds] %En [cmds] |
|-------------+----------------------------------------------|
| Description | Controls auto retrain mode and |
| | fallback/fallforward |
|------------------------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %E0 | Auto retrain disabled |
|--------------+---------------------------------------------|
| %E1 | Auto retrain enabled |
|--------------+---------------------------------------------|
| í %E2 | Auto retrain and fallback/fallforward |
| | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK SEND |
|------------------------------------------------------------|
| Type | Configuration |
|-------------+----------------------------------------------|
| Format | AT [cmds] \Bn [cmds] |
|-------------+----------------------------------------------|
| Default | 3 |
|-------------+----------------------------------------------|
| Range | 1-9 |
|-------------+----------------------------------------------|
| Unit | .1 second |
|-------------+----------------------------------------------|
| Description | Sends break of n length to remote modem |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|------------------+-----------------------------------------|
| Format: | AT [cmds] \Kn [cmds] |
|------------------+-----------------------------------------|
| Description: | Configures action of break signal. |
|------------------------------------------------------------|
| Command | Break | Break from DTE | Break from DTE |
| | from DTE | while in normal | while in direct |
| | | mode | mode |
| | while in | | |
| | reliable | | |
| | mode | | |
|-----------------------+------------------+-----------------|
| \K0 | Enter | Buffers cleared | Send break and |
| | command | and break sent | enter command |
| | mode, do | to remote modem | mode |
| | not send | | |
| | break to | | |
| | remote | | |
| | modem | | |
|---------+-------------+------------------+-----------------|
| \K1 | Buffers | Buffers cleared | Send break and |
| | cleared and | and break sent | enter command |
| | break sent | to remote modem | mode |
| | to remote | | |
| | modem | | |
|---------+-------------+------------------+-----------------|
| \K2 | Enter | Send break to | Send break to |
| | command | remote modem | remote modem |
| | mode, do | immediately | immediately |
| | not send | | |
| | break to | | |
| | remote | | |
| | modem | | |
|---------+-------------+------------------+-----------------|
| \K3 | Send break | Send break to | Send break and |
| | to remote | remote modem | enter command |
| | modem | immediately | mode |
| | immediately | | |
|---------+-------------+------------------+-----------------|
| \K4 | Enter | Send break to | Send break to |
| | command | remote modem | remote modem |
| | mode, do | with transmitted | immediately |
| | not send | data | |
| | break to | | |
| | remote | | |
| | modem | | |
|---------+-------------+------------------+-----------------|
| í \K5 | Send break | Send break to | Send break to |
| | with | remote modem | remote modem |
| | transmitted | with transmitted | immediately |
| | data | data | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type | Configuration |
|-------------+----------------------------------------------|
| Format | AT [cmds] %Cn [cmds] |
|-------------+----------------------------------------------|
| Description | Selects data compression |
|-------------+----------------------------------------------|
| Command | Function |
|-------------+----------------------------------------------|
| %C0 | Data compression disabled |
|-------------+----------------------------------------------|
| %C1 | MNP5 enabled |
|-------------+----------------------------------------------|
| %C2 | V.42bis enabled |
|-------------+----------------------------------------------|
| í %C3 | MNP5 and V.42bis enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FAX TRANSMIT LEVEL |
|------------------------------------------------------------|
| Type | Register |
|-------------+----------------------------------------------|
| Format | AT [cmds] S92=n [cmds] |
|-------------+----------------------------------------------|
| Default | 10 |
|-------------+----------------------------------------------|
| Range | 0-15 |
|-------------+----------------------------------------------|
| Unit | -1dBm |
|-------------+----------------------------------------------|
| Description | Controls fax transmission level |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLASH DIAL MODIFIER TIME |
|------------------------------------------------------------|
| Type | Register |
|-------------+----------------------------------------------|
| Format | AT [cmds] S29=n [cmds] |
|-------------+----------------------------------------------|
| Default | 10 |
|-------------+----------------------------------------------|
| Range | 0-255 |
|-------------+----------------------------------------------|
| Unit | 1ms |
|-------------+----------------------------------------------|
| Description | Time the modem will go on-hook upon |
| | receiving the ! dial modifier in dial string |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XOFF |
|------------------------------------------------------------|
| Type | Register |
|-------------+----------------------------------------------|
| Format | AT [cmds] S33=n [cmds] |
|-------------+----------------------------------------------|
| Default | 19 |
|-------------+----------------------------------------------|
| Range | 0-255 |
|-------------+----------------------------------------------|
| Unit | ASCII |
|-------------+----------------------------------------------|
| Description | Sets the character used to represent XOFF |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XON |
|------------------------------------------------------------|
| Type | Register |
|-------------+----------------------------------------------|
| Format | AT [cmds] S32=n [cmds] |
|-------------+----------------------------------------------|
| Default | 17 |
|-------------+----------------------------------------------|
| Range | 0-255 |
|-------------+----------------------------------------------|
| Unit | ASCII |
|-------------+----------------------------------------------|
| Description | Sets the character used to represent XON |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL LEVEL |
|------------------------------------------------------------|
| Type | Immediate |
|-------------+----------------------------------------------|
| Format | AT [cmds] %L [cmds] |
|-------------+----------------------------------------------|
| Range | 009-043 |
|-------------+----------------------------------------------|
| Unit | -1dBm |
|-------------+----------------------------------------------|
| Description | Reports received signal level |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MAXIMUM BLOCK SIZE FOR TRANSMISSION |
|------------------------------------------------------------|
| Type | Configuration |
|-------------+----------------------------------------------|
| Format | AT [cmds] \An [cmds] |
|-------------+----------------------------------------------|
| Description | Sets the maximum transmittable block size. |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| \A0 | Maximum MNP block size is 64 characters. |
|---------------+--------------------------------------------|
| í \A1 | Maximum MNP block size is 128 characters. |
|---------------+--------------------------------------------|
| \A2 | Maximum MNP block size is 192 characters. |
|---------------+--------------------------------------------|
| \A3 | Maximum MNP block size is 256 characters. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MODEM PROTOCOL |
|------------------------------------------------------------|
| Type | Configuration |
|-------------+----------------------------------------------|
| Format | AT [cmds] \Nn [cmds] |
|-------------+----------------------------------------------|
| Description | Sets connect mode |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| \N0 | Normal mode enabled |
|---------------+--------------------------------------------|
| \N1 | Direct mode enabled |
|---------------+--------------------------------------------|
| \N2 | Reliable mode enabled |
|---------------+--------------------------------------------|
| í \N3 | MNP or normal mode enabled |
|---------------+--------------------------------------------|
| \N4 | LAP-M reliable enabled |
|---------------+--------------------------------------------|
| \N5 | MNP reliable mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PROTOCOL/SPEED |
|------------------------------------------------------------|
| Type | Register |
|-------------+----------------------------------------------|
| Format | AT [cmds] S37=n [cmds] |
|-------------+----------------------------------------------|
| Description | Selects switched line speed |
|------------------------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í S37=0 | Connect at highest common speed |
|--------------+---------------------------------------------|
| S37=1 | Connect at 300bps |
|--------------+---------------------------------------------|
| S37=2 | Connect at 300bps |
|--------------+---------------------------------------------|
| S37=3 | Connect at 300bps |
|--------------+---------------------------------------------|
| S37=4 | Not used |
|--------------+---------------------------------------------|
| S37=5 | Connect at 1200bps |
|--------------+---------------------------------------------|
| S37=6 | Connect at 2400bps |
|--------------+---------------------------------------------|
| S37=7 | Connect at V.23 |
|--------------+---------------------------------------------|
| S37=8 | Connect at 4800bps |
|--------------+---------------------------------------------|
| S37=9 | Connect at 9600bps |
|--------------+---------------------------------------------|
| S37=10 | Connect at 12.0Kbps |
|--------------+---------------------------------------------|
| S37=11 | Connect at 14.4Kbps |
|--------------+---------------------------------------------|
| S37=12 | Connect at 7200bps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT SIGNAL QUALITY |
|------------------------------------------------------------|
| Type | Immediate |
|-------------+----------------------------------------------|
| Format | AT [cmds] %Q [cmds] |
|-------------+----------------------------------------------|
| Description | Reports signal quality. Retrain threshold is |
| | 008 or greater. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SLEEP INACTIVITY TIMER |
|------------------------------------------------------------|
| Type | Register |
|-------------+----------------------------------------------|
| Format | AT [cmds] S24=n [cmds] |
|-------------+----------------------------------------------|
| Default | 0 |
|-------------+----------------------------------------------|
| Range | 0-255 |
|-------------+----------------------------------------------|
| Unit | Second |
|-------------+----------------------------------------------|
| Description | Maximum duration of DTE and DCE inactivity |
| | allowed prior to initiating low-power sleep |
| | mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT MAPPED REGISTERS |
|------------------------------------------------------------|
| Register | Default |
|------------------------------+-----------------------------|
| S14 | 138 |
|------------------------------+-----------------------------|
| S16 | 0 |
|------------------------------+-----------------------------|
| S21 | 4 |
|------------------------------+-----------------------------|
| S22 | 117 |
|------------------------------+-----------------------------|
| S23 | 54 |
|------------------------------+-----------------------------|
| S27 | 9 |
|------------------------------+-----------------------------|
| S28 | 0 |
|------------------------------+-----------------------------|
| S31 | 2 |
|------------------------------+-----------------------------|
| S39 | 3 |
|------------------------------+-----------------------------|
| S40 | 105 |
|------------------------------+-----------------------------|
| S41 | 3 |
+------------------------------------------------------------+
