# ACTIONTEC ELECTRONICS, INC
COMNET ETHERNET+FAX/MODEM 288
Card Type Fax, Modem (synchronous/asynchronous),
Network Interface Card
Chip Set Unidentified
I/O Options Ethernet 10BaseT connector, Ethernet
10Base2 connector
NIC Type Ethernet
Network Transfer Rate 100Mbps
Maximum Modem Rate 28.8Kbps
Maximum Fax Rate 14.4Kbps
Data Bus PCMCIA Type II
Fax Class Class I & II
Data Modulation Bell 103/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
Topology Linear Bus, Star, Ring
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Not available
IMG IMG 1
+------------------------------------------------------------+

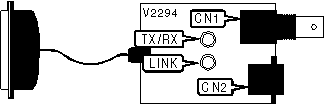

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| RJ-45 UTP/10BaseT | CN1 | RG-58A | CN2 |
| | | coaxial/10Base2 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+-------+----------+---------------------------------|
| TX/RX | Green | Blinking | Transmitting/receiving data |
| | | | to/from network |
|-------+-------+----------+---------------------------------|
| TX/RX | Green | Off | Not transmitting/receiving data |
| | | | to/from network |
|-------+-------+----------+---------------------------------|
| LINK | Green | On | Link integrity good on 10BaseT |
| | | | network |
|-------+-------+----------+---------------------------------|
| LINK | Green | Off | Link integrity broken on |
| | | | 10BaseT network |
+------------------------------------------------------------+
+---------------------------------------------------------+
| SUPPORTED COMMAND SET |
|---------------------------------------------------------|
| Basic AT Commands |
|---------------------------------------------------------|
| AT, ‘+++’, ‘Comma’, A/ |
|---------------------------------------------------------|
| A, D, E, H, L, M, V, W, Z |
|---------------------------------------------------------|
| &C, &D, &F, &W, &X, &Y, &Z |
|---------------------------------------------------------|
| S Registers |
|---------------------------------------------------------|
| S0, S6, S7, S8 |
|---------------------------------------------------------|
| Note: See MHI Help file for full command documentation. |
+---------------------------------------------------------+
